Kia Rio: Dynamic Damper Components - Driveshaft Assembly - Driveshaft and axle - Kia Rio UB 2012-2020 Service ManualKia Rio: Dynamic Damper Components

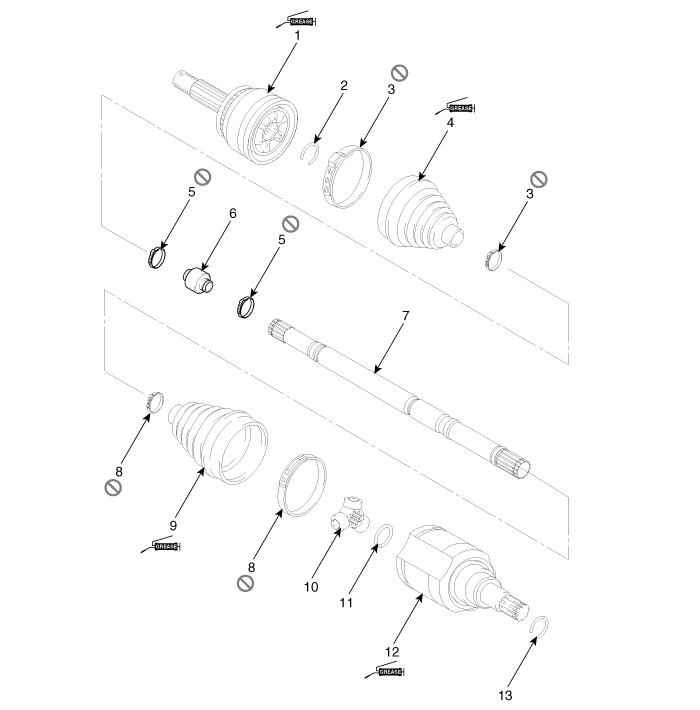

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

TJ Joint Installation
1. Wrap tape around the driveshaft spline(TJ) to prevent damage to the boot. 2. Using the alignment marks (D) made during disassembly as a ...

Dynamic Damper Replacement
1. Remove the front driveshaft. (Refer to DS group - Front Driveshaft) 2. Remove the TJ joint assembly. (Refer to DS group - TJ joint) ...
