Kia Rio: ECM Terminal And Input/Output signal [M/T]
| ECM Terminal Function (M/T) |

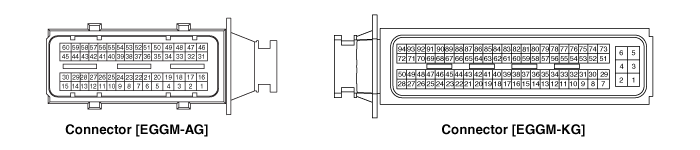

Connector [EGGM-AG]
| Pin No. |
Description |
Connected to |
| 1 |
Injector (Cylinder #3) [High] control output |
Injector (Cylinder #3) |
| 2 |
Injector (Cylinder #4) [High] control output |
Injector (Cylinder #4) |
| 3 |
Injector (Cylinder #2) [Low] control output |
Injector (Cylinder #2) |
| 4 |
- |
|
| 5 |
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] heater control
output |
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] |
| 6 |
- |
|
| 7 |
Supply power (+5V) |
Cruise control switch |
| 8 |
- |
|
| 9 |
- |
|
| 10 |
- |
|
| 11 |
- |
|
| 12 |
Immobilizer indication lamp control output |
Cluster |
| 13 |
- |
|
| 14 |
Cooling fan relay [High] control output |
Cooling fan relay [High] |
| 15 |
CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output |
CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] |
| 16 |
Injector (Cylinder #2) [High] control output |
Injector (Cylinder #2) |
| 17 |
Injector (Cylinder #1) [High] control output |
Injector (Cylinder #1) |
| 18 |
Injector (Cylinder #3) [Low] control output |
Injector (Cylinder #3) |
| 19 |
- |
|
| 20 |
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor2] heater control
output |
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] |
| 21 |
- |
|
| 22 |
- |
|
| 23 |
Engine Coolant Temperature Sensor (ECTS) signal input |
Engine Coolant Temperature Sensor (ECTS) |
| 24 |
Sensor ground |
Engine Coolant Temperature Sensor (ECTS) |
| 25 |
- |
|
| 26 |
Fuel Tank Pressure Sensor (FTPS) signal input |
Fuel Tank Pressure Sensor (FTPS) |
| 27 |
Fuel pump relay control output (Without Immobilizer) |
Fuel pump relay |
| Canister Close Valve (CCV) control output (With Immobilizer) |
Canister Close Valve (CCV) |
|
| 28 |
- |
|
| 29 |
A/C compressor relay control output |
A/C compressor relay |
| 30 |
- |
|
| 31 |
Ignition coil (Cylinder #3) control output |
Ignition coil (Cylinder #3) |
| 32 |
Ignition coil (Cylinder #1) control output |
Ignition coil (Cylinder #1) |
| 33 |
Injector (Cylinder #1) [Low] control output |
Injector (Cylinder #1) |
| 34 |
Fuel Pressure Control Valve (FPCV) [High] control output |
Fuel Pressure Control Valve (FPCV) |
| 35 |
ETC motor [-] control output |
ETC motor |
| 36 |
- |
|
| 37 |
Knock Sensor (KS) signal input |
Knock Sensor (KS) |
| 38 |
Sensor ground |
Knock Sensor (KS) |
| 39 |
Blower switch Max. siganl input |
Heater control module |
| 40 |
Brake Light switch signal input |
Brake switch |
| 41 |
Wheel Speed Sensor [B] signal input [without ABS/ESC] |
Wheel Speed Sensor (WSS) |
| 42 |
Wheel Speed Sensor [A] signal input [without ABS/ESC] |
Wheel Speed Sensor (WSS) |
| 43 |
- |
|
| 44 |
- |
|
| 45 |
CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output |
CVVT Oil Control Valve (OCV) [Bank 1/Intake] |
| 46 |
Ignition coil (Cylinder #4) control output |
Ignition coil (Cylinder #4) |
| 47 |
Ignition coil (Cylinder #2) control output |
Ignition coil (Cylinder #2) |
| 48 |
Injector (Cylinder #4) [Low] control output |
Injector (Cylinder #4) |
| 49 |
Fuel Pressure Control Valve (FPCV) [Low] control output |
Fuel Pressure Control Valve (FPCV) |
| 50 |
ETC motor [+] control output |
ETC motor |
| 51 |
- |
|
| 52 |
- |
|
| 53 |
Brake Test switch signal input |
Brake switch |
| 54 |
- |
|
| 55 |
Clutch switch signal input |
Clutch switch |
| 56 |
Electric load signal input [Defrost] |
Alternator |
| 57 |
Alternator COM signal output |
Alternator |
| 58 |
- |
|
| 59 |
Cooling fan relay [Low] control output |
Cooling fan relay |
| 60 |
Variable Intake Solenoid (VIS) valve control output |
Variable Intake Solenoid (VIS) valve |
Connector [EGGM-KG]
| Pin No. |
Description |
Connected to |
| 1 |
ECM ground |
Chassis ground |
| 2 |
ECM ground |
Chassis ground |
| 3 |
ECM ground |
Chassis ground |
| 4 |
Battery power (B+) |
Main relay |
| 5 |
Battery power (B+) |
Battery |
| 6 |
Battery power (B+) |
Battery |
| 7 |
Battery power (B+) |
Main relay |
| 8 |
Sensor ground |
Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] |
| 9 |
Accelerator Position Sensor (APS) 1 signal input |
Accelerator Position Sensor (APS) 1 |
| 10 |
Sensor ground |
Accelerator Position Sensor (APS) 2 |
| 11 |
- |
|
| 12 |
Sensor ground |
Fuel Tank Pressure Sensor (FTPS) |
| 13 |
- |
|
| 14 |
Throttle Position Sensor (TPS) 1 signal input |
Throttle Position Sensor (TPS) 1 |
| 15 |
- |
|
| 16 |
- |
|
| 17 |
Fuel Level signal input |
Fuel Level Sender (FLS) |
| 18 |
Sensor power (+5V) |
Accelerator Position Sensor (APS) 2 |
| 19 |
- |
|
| 20 |
Sensor power (+5V) |
Rail Pressure Sensor (RPS) |
| A/C Pressure Transducer (APT) |
||
| 21 |
- |
|
| 22 |
Wiper switch signal input |
Wiper switch |
| 23 |
- |
|
| 24 |
Alternator PWM signal output |
Alternator |
| 25 |
- |
|
| 26 |
- |
|
| 27 |
- |
|
| 28 |
- |
|
| 29 |
Ignition switch signal input |
|
| 30 |
Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] signal
input |
Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] |
| 31 |
Accelerator Position Sensor (APS) 2 signal input |
Accelerator Position Sensor (APS) 2 |
| 32 |
Sensor ground |
Accelerator Position Sensor (APS) 1 |
| 33 |
- |
|
| 34 |
- |
|
| 35 |
Sensor ground |
Throttle Position Sensor (TPS) |
| 36 |
Throttle Position Sensor (TPS) 2 signal input |
Throttle Position Sensor (TPS) 2 |
| 37 |
- |
|
| 38 |
- |
|
| 39 |
Sensor power (+5V) |
Throttle Position Sensor (TPS) 1,2 |
| 40 |
Sensor power (+5V) |
Accelerator Position Sensor (APS) 1 |
| 41 |
Sensor power (+5V) |
Manifold Absolute Pressure Sensor (MAPS) |
| Fuel Tank Pressure Sensor (FTPS) |
||
| 42 |
Sensor power (+5V) |
Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
| Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
||
| 43 |
A/C switch input |
A/C control module |
| 44 |
A/C pressure switch |
A/C control module |
| 45 |
A/C Pressure Transducer (APT) signal input |
A/C Pressure Transducer (APT) |
| 46 |
Vehicle speed signal input |
Vehicle Speed Sensor |
| 47 |
- |
|
| 48 |
- |
|
| 49 |
- |
|
| 50 |
Malfunction Indicator Lamp (MIL) control output |
Malfunction Indicator Lamp (MIL) |
| 51 |
- |
|
| 52 |
VS-/IP- (Common Ground for VS, IP) |
Heated Oxygen Sensor [Bank 1/Sensor 1] |
| 53 |
Rc/Rp (Pump Cell Voltage) |
Heated Oxygen Sensor [Bank 1/Sensor 1] |
| 54 |
- |
|
| 55 |
- |
|
| 56 |
Ground |
Cruise Control Switch |
| 57 |
- |
|
| 58 |
Rail Pressure Sensor (RPS) signal input |
Rail Pressure Sensor (RPS) |
| 59 |
Cruise Control Switch signal input |
Cruise Control Switch |
| 60 |
Start signal input |
PDM module |
| 61 |
LIN communication signal input |
Battery sensor |
| 62 |
- |
|
| 63 |
CAN [Low] |
Other control module, Data Link Connector (DLC), Multi-Purpose
Check Connector |
| 64 |
Sensor ground |
Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
| 65 |
Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input |
Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
| 66 |
- |
|
| 67 |
Crankshaft Position Sensor (CKPS) [B] signal input |
Crankshaft Position Sensor (CKPS) |
| 68 |
- |
|
| 69 |
- |
|
| 70 |
- |
|
| 71 |
- |
|
ECM Terminal And Input/Output signal [A/T]
ECM Terminal Function (A/T)
Connector [EGGA-AG]
Pin No.
Description
Connected to
1
Injector (Cylinder #1) [High] control output
...
