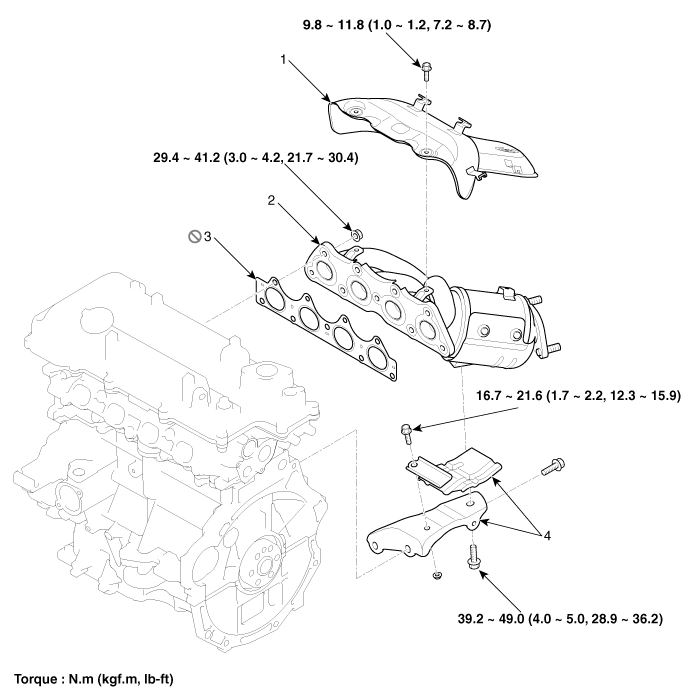

Kia Rio: Exhaust Manifold: Components - Intake And Exhaust System - Engine Mechanical System - Kia Rio UB 2012-2024 Service ManualKia Rio: Exhaust Manifold: Components


1. Heat protector
2. Exhaust manifold
3. Exhaust manifold gasket
4. Exhaust manifold stay
