Kia Rio: Front Seat Components - Seat & Power Seat - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: Front Seat Components

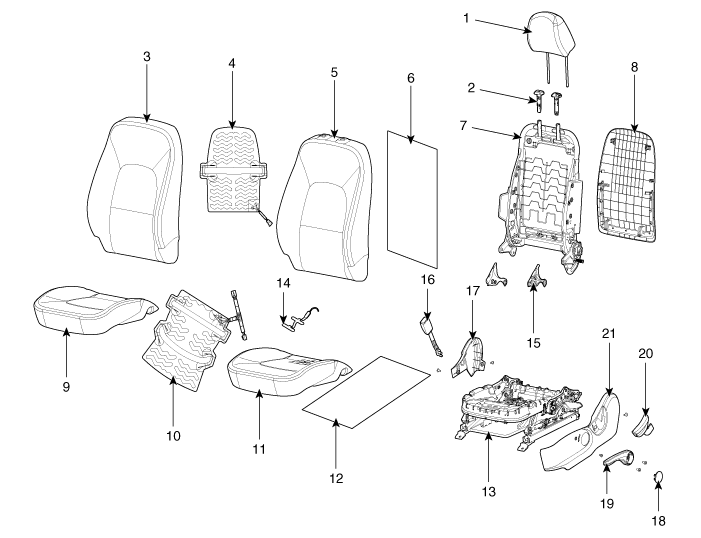

1 . Headrest
2 . Headrest guide
3 . Front seat back cover
4 . Front seat back warmer
5 . Front seat back pad
6 . Front seat back silener cloth
7 . Front seat back frame assembly
8 . Front seat back board
9 . Front seat cushion cover
10 . Front seat cushion warmer
11 . Front seat cushion pad
12 . Front seat cushion silener cloth
13 . Front seat cushion frame assembly
14 . SBR mat
15 . Front recliner cover
16 . Front seat belt buckle
17 . Shield inner cover
18 . Pumping lever cap
19 . Pumping lever
20 . Recliner knob
21 . Shield outer cover

Seat & Power Seat
...

Front Seat Replacement
   • When removing or installing the front passenger seat, be sure to initialize the Weight ...
