Kia Rio: Components - Rear Disc Brake - Brake System - Kia Rio UB 2012-2019 Service ManualKia Rio: Components

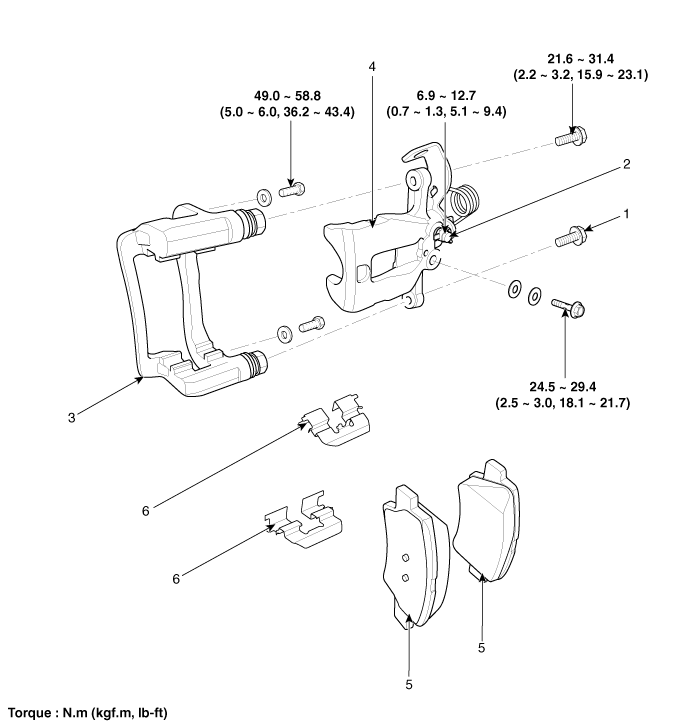

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Brake pad
6. Pad retainer

Rear Disc Brake
...

Removal
1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
