Kia Rio: Fuses - Maintenance - Kia Rio UB 2012-2019 Owners ManualKia Rio: Fuses

A vehicles electrical system is protected from electrical overload damage by


A vehicles electrical system is protected from electrical overload damage by fuses.

This vehicle has 2 fuse panels, one located in the drivers side panel bolster, the other in the engine compartment near the battery.

If any of your vehicles lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.

If the electrical system does not work, first check the drivers side fuse panel.

Before replacing a blown fuse, move to safe place, turn off the engine and all electric devices, and then disconnect the negative battery cable.

Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.

WARNING - Fuse replacement

CAUTION - Fuse replacement

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

✽ NOTICE

The actual fuse/relay panel label may differ from equipped items.

CAUTION

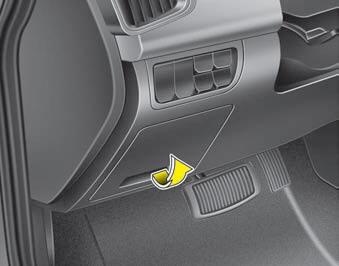

Instrument panel fuse replacement


Instrument panel fuse replacement

1. Turn the ignition switch and all other switches off.

2. Open the fuse panel cover.

3. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.

4. Check the removed fuse; replace it if it is blown.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized Kia dealer.

If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigar lighter fuse.

If the headlights or other electrical components do not work and the fuses are OK, check the fuse block in the engine compartment. If a fuse is blown, it must be replaced.

Memory fuse


Memory fuse

Your vehicle is equipped with the memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the vehicle for prolonged periods.

1. Turn off the engine.

2. Turn off the headlights and tail lights.

3. Open the drivers side panel cover and pull up the memory fuse.

If the memory fuse is pulled up from the fuse panel, the warning chime, audio, clock and interior lamps, etc., will not operate. Some items must be reset after replacement. Refer to Battery in this section.

Even though the memory fuse is pulled up, the battery can still be discharged by operation of the headlights or other electrical devices.

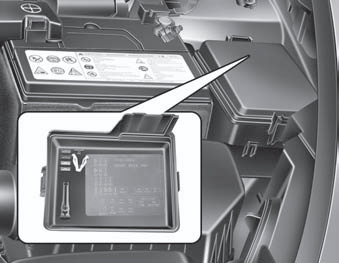

Engine compartment panel fuse replacement


Engine compartment panel fuse replacement

1.Turn the ignition switch and all other switches off.

2.Remove the fuse box cover by pressing the tap and pulling up the cover.

3.Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4.Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized Kia dealer.

CAUTION - Fuse panel covers

After checking the fuse panel in the engine compartment, securely install the fuse panel cover to prevent electrical failures which may occur from water leaking in.

Multi fuse


Multi fuse

If the multi fuse is blown, consult an authorized Kia dealer.

Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

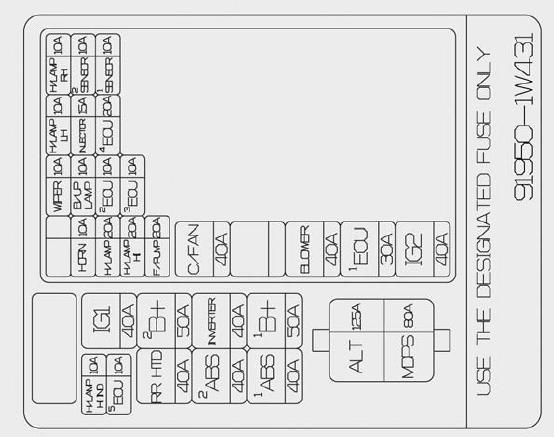

Instrument panel fuse panel


Instrument panel fuse panel

NOTICE

The actual fuse/relay panel label may differ from equipped items.


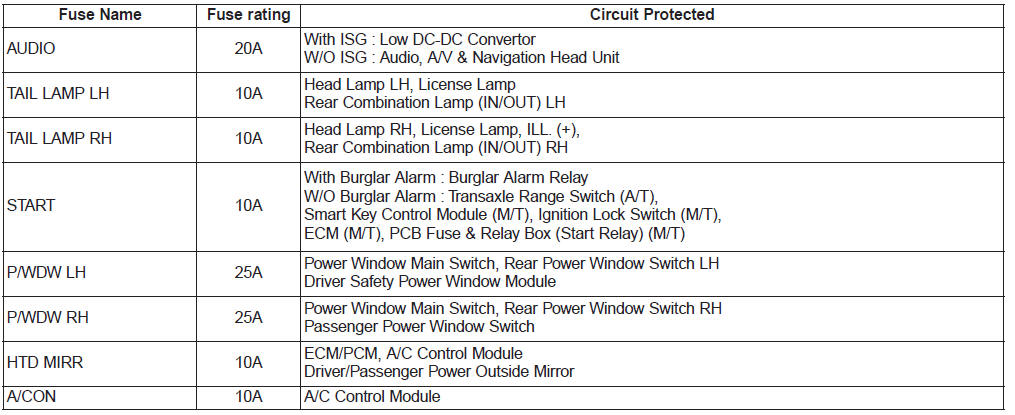

Engine compartment fuse panel


Engine compartment fuse panel

✽ NOTICE

The actual fuse/relay panel label may differ from equipped items.

Instrument panel fuse panel


Instrument panel fuse panel



Engine compartment fuse panel


Engine compartment fuse panel

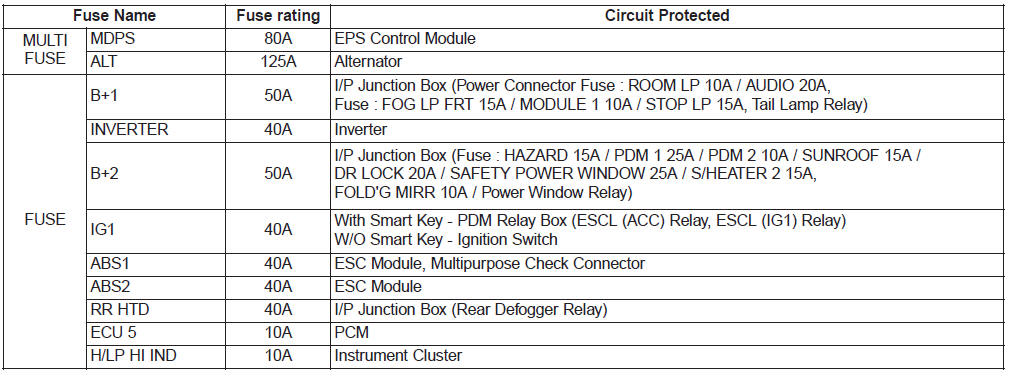

Engine compartment main fuse panel


Engine compartment main fuse panel
