Kia Rio: Head Lamps Component - Lighting System - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Head Lamps Component

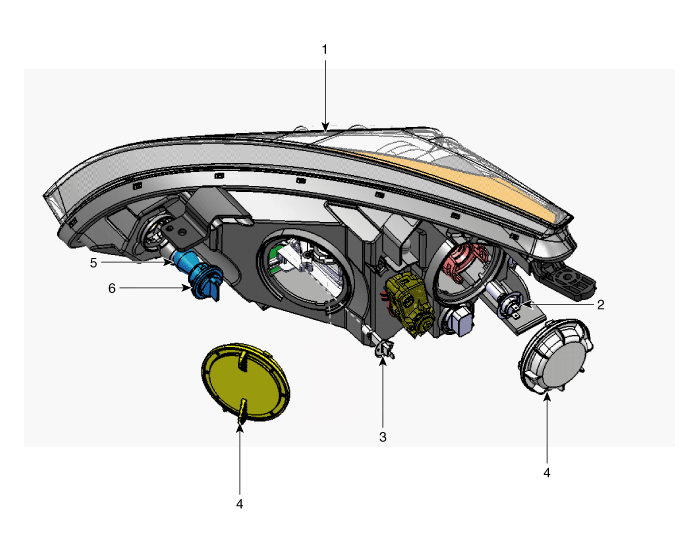

1. Head lamp assembly lens & housing
2. Head lamp bulb (Low)
3. Head lamp bulb (High)
4. Dust cover
5. Turn signal lamp bulb
6. Socket

Component Location (3)
[5 Door] 1. Back up lamp 2. Turn signal lamp 3. Tail lamp/ Stop lamp 4. Tail lamp 5. Stop lamp 6. Side marker lamp 7. High mounted stop lamp 8. Lic ...

Head Lamps Removal
Head Lamp 1. Disconnect the negative (-) battery terminal. 2. Remove the radiator grille upper cover (A), after loosening the mounting ...
