Kia Rio: Heater Unit Components - Heater - Heating,Ventilation, Air Conditioning - Kia Rio UB 2012-2019 Service ManualKia Rio: Heater Unit Components

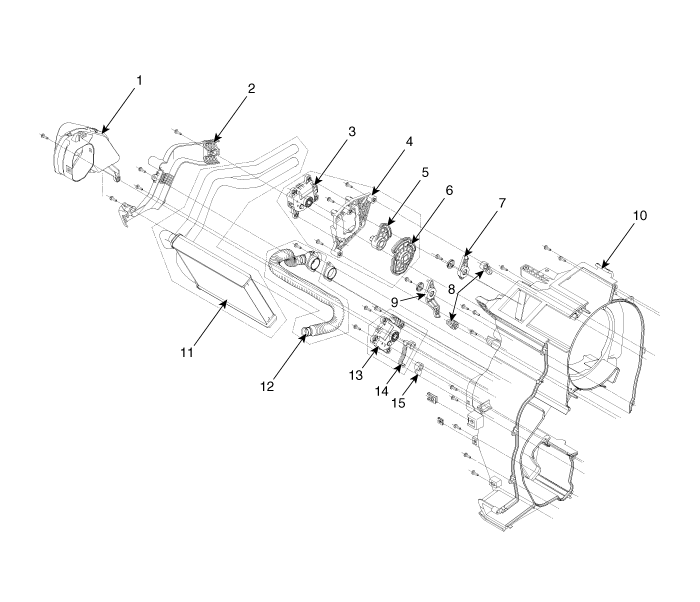

1. Shower Duct (Left)
2. Heater Pipe Cover
3. Mode Control Actuator
4. Mode Control Actuator Bracket
5. Defog mode lever (FATC)
6. Mode Control Main Lever (MANUAL)
7. Vent Sub lever
8. Vent Door Lever
9. Foot Sub Lever
10. Heat Case (Left)
11. Heater Core Assembly
12. Aspirator Hose
13.Temperature Control Actuator
14. Temperature Control Actuator Lever
15. Temperature Door Lever

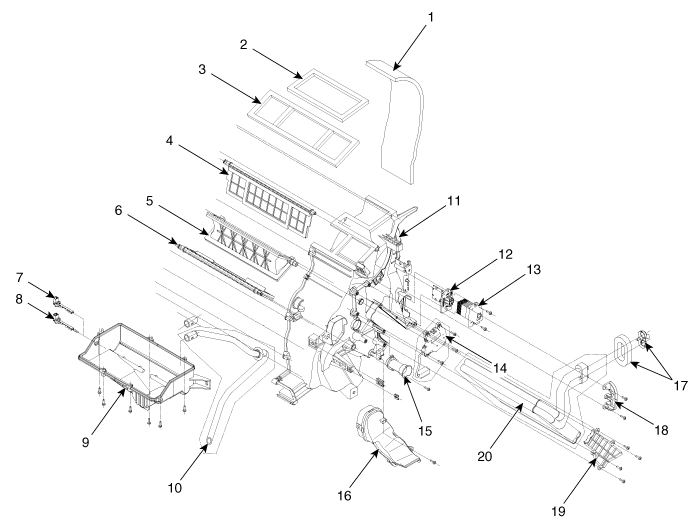

1. NVH Pad
2. Defog Seal
3. Vent Seal
4. Vent/Defog Door
5. Foot Door
6. Temperature Door
7. Evaporator Temperature Sensor Hole Cover
8. Evaporator Temperature Sensor
9. Heater Lower Case
10. Drain Hose
11. Heater Case (Right)
12. Blower Resistor (MANUAL)
13. Power Mosfet (FATC)
14. Foot Actuator (With auto defogging system)
15. Cool Box Hose
16. Shower Duct (Left)
17. Flange Seal
18. Evaporator Flange Clip
19. Evaporator Core Cover
20. Evaporator Core

Heater Unit Component Location
...

Heater Unit Replacement
1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station. 3. ...
