Kia Rio: Interior Trim Components - Interior - Body (Interior and Exterior) - Kia Rio UB 2012-2020 Service ManualKia Rio: Interior Trim Components

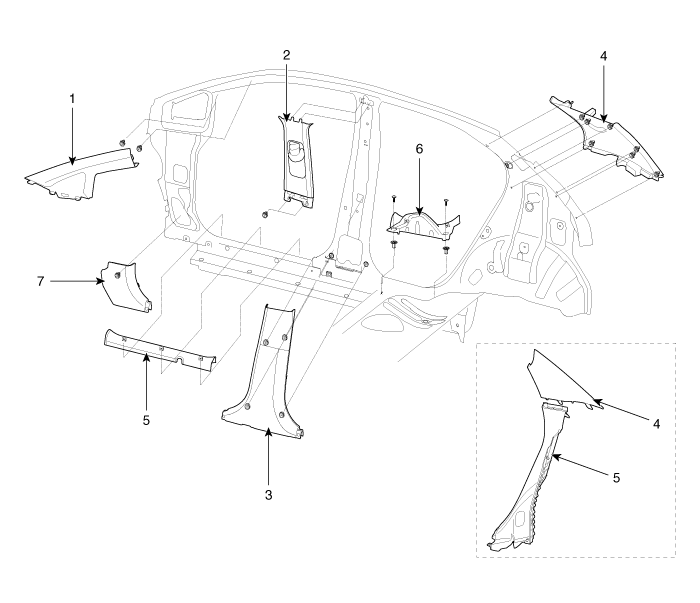

[5 Door, 4 Door]


1 . Front pillar trim
2 . Center pillar upper trim
3 . Center pillar lower trim
4 . Rear pillar trim [5 Door]
5 . Front door scuff trim
6 . Rear door scuff trim
7 . Cowl side trim
8. Rear pillar trim [4 Door]
9. Rear wheel housing trim [4 Door]
