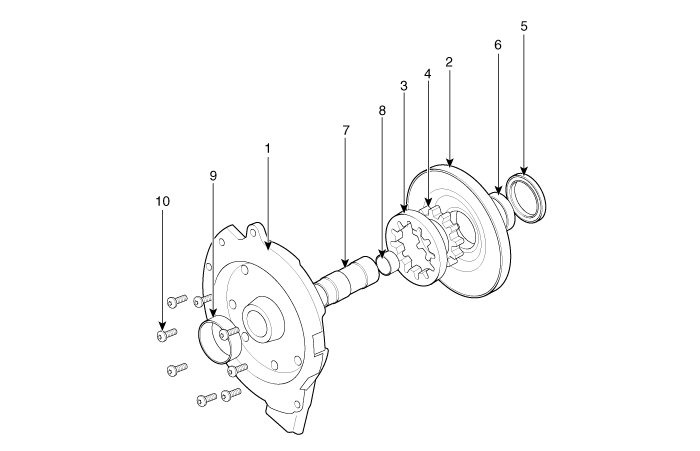

Kia Rio: Oil Pump Components
| 1. Oil pump cover 2. Oil pump housing 3. Driven gear 4. Drive gear 5. Oil seal |
6. Bushing-housing 7. Reaction shaft 8. Bushing-reaction shaft 9. Sleeve 10. Bolt |

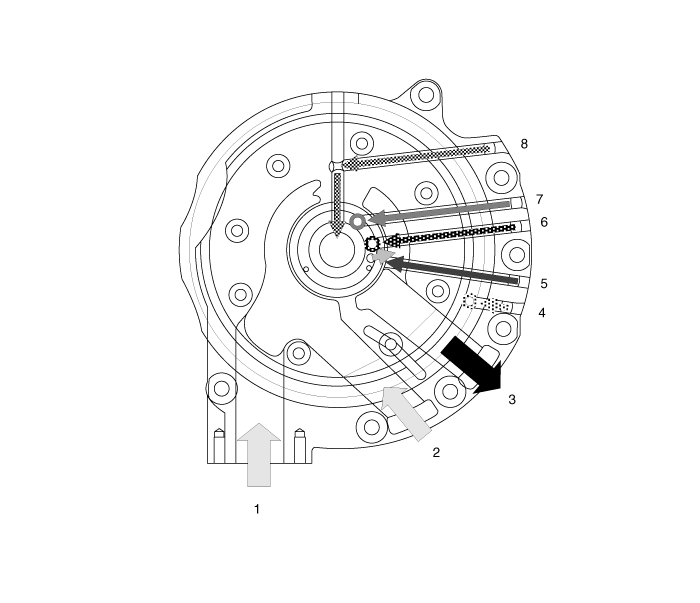

Oil Pump Operation Flow
| 1. Inhale(Oil filter) 2. Inhale(Valve body) 3. Outlet 4. 26/B operation pressure |
5. 35R/C operation pressure 6. Lubrication 7. Lock up clutch apply pressure 8. Lock up clutch release pressure |
Oil Pump Description
The oil pump is built-in as a single unit with the 26 brake chamber. Rotation
of the pump builds the hydraulic pressure needed for the lubrication of the
various parts of the transaxle and op ...
Fluid Components Location
1. Injection hole(eyebolt)
2. Oil level plug
3. Oil drain plug
...
