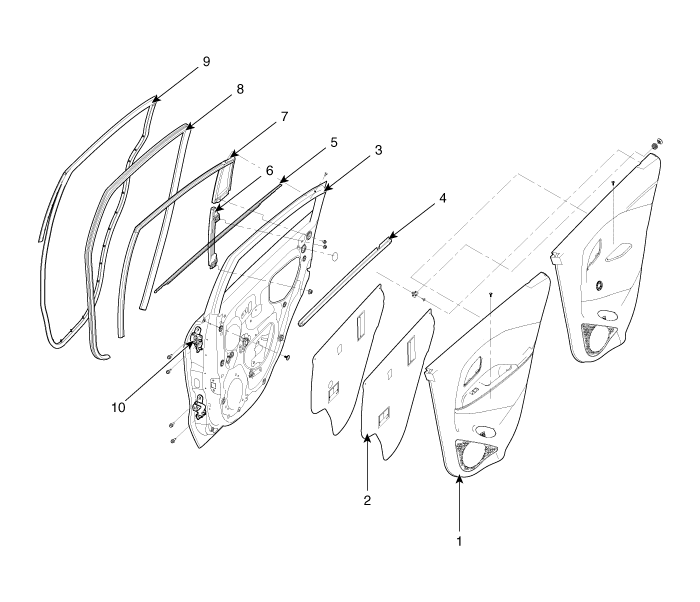

Kia Rio: Rear Door Components - Exterior - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: Rear Door Components


1 . Rear door trim
2 . Rear door trim seal
3 . Rear door panel
4 . Rear door belt inside weatherstrip
5 . Rear door belt outside weatherstrip
6 . Rear door delta lower run & channel assembly
7 . Rear door window run & fixed glass
8. Rear door body side weatherstrip
9 . Rear door side weatherstrip
10 . Rear door hinge
