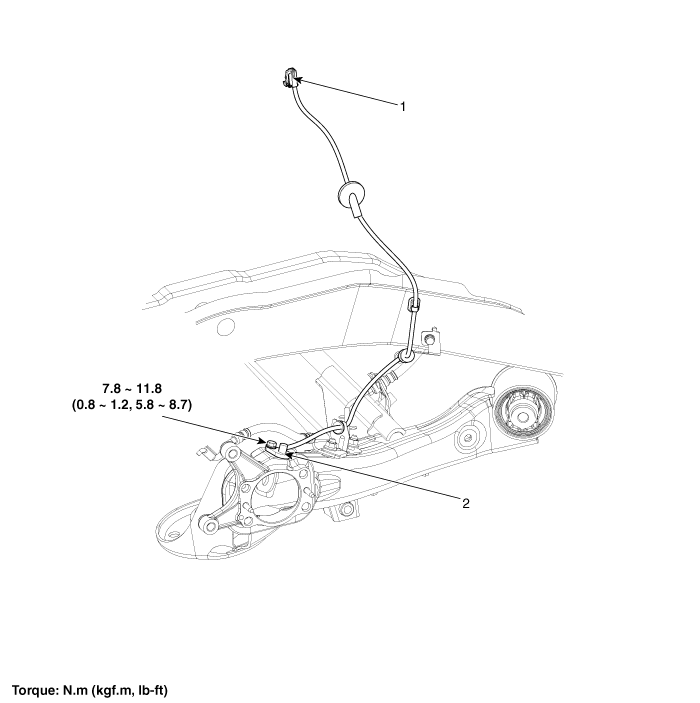

Kia Rio: Rear Wheel Speed Sensor Components - ESC(Electronic Stability Control) System - Brake System - Kia Rio UB 2012-2019 Service ManualKia Rio: Rear Wheel Speed Sensor Components


1. Rear wheel speed sensor connector
2. Rear wheel speed sensor

Front Wheel Speed Sensor Inspection
1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.    ...

Rear Wheel Speed Sensor Removal
1. Remove the rear wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
