Kia Rio: Relay Box (Engine Compartment) Components - Fuses And Relays - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Relay Box (Engine Compartment) Components




Relay Box (Engine Compartment) Inspection


Component Location

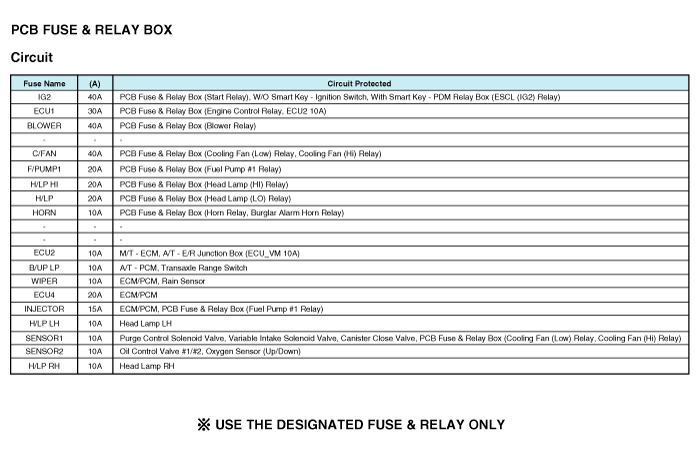

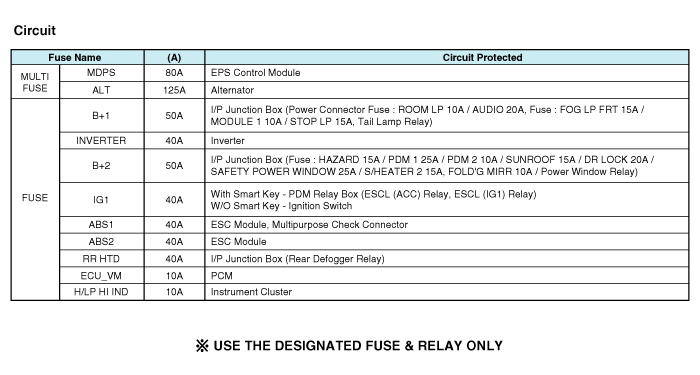

1. PCB fuse & relay box (Head lamp low/ hi, Fuel pump #1, HAC, Engine control, Front wiper, Rain sensor, Blower, Cooling fan low/ hi, Horn, Buglar alarm horn, Start relay) ...

Relay Box (Engine Compartment) Inspection
Replacement of EMS box 1. Disconnect the negative (-) battery terminal. 2. Push hooks in the engine room relay box out to the arrow directio ...
