Kia Rio: Component Location - Fuses And Relays - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Component Location


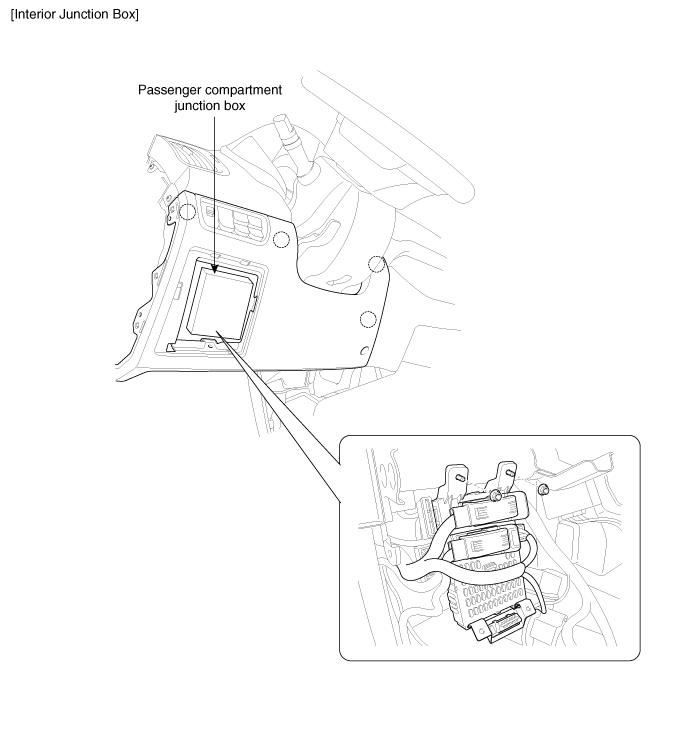

1. PCB fuse & relay box (Head lamp low/ hi, Fuel pump #1, HAC, Engine control, Front wiper, Rain sensor, Blower, Cooling fan low/ hi, Horn, Buglar alarm horn, Start relay)

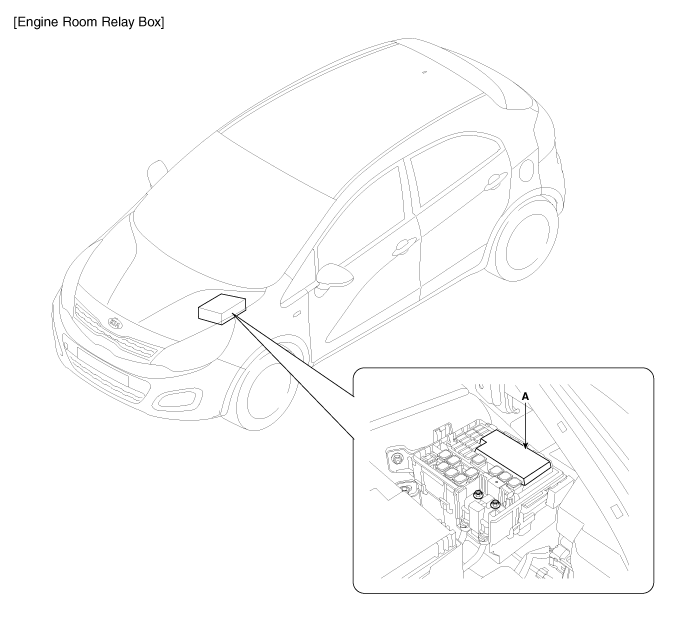

Relay Box (Engine Compartment) Components


Fuses And Relays
...

Relay Box (Engine Compartment) Components
...
