Kia Rio: Steering Angle Sensor (Except MDPS) Description - ESC(Electronic Stability Control) System - Brake System - Kia Rio UB 2012-2019 Service ManualKia Rio: Steering Angle Sensor (Except MDPS) Description

The steering angle speed sensor detects the angle of the steering wheel in order to which direction a user chooses.The sensor is detached on the Mutil-Function Switch (MPS) under the steering wheel.
Measureing Principle
The split of the steering angle sensor detects a steering angle of the steering wheel by a ON/OFF pulse caused by whether or not the LED lights go through the hole of the split, rotating as the steering wheel revolves. There are three LEDs, two(ST1, ST2) for detecting a steering direction, and the other for the neutral position.The HECU calculates the steering angle by the pulse from the steering angle sensor.


Specification
Description
Specification
Operating voltage
9 ~ 16 V
Operating temperature
-30 ~ 75 °C
Current consumption
Max.100 mA
Steering angle velocity
Max. ± 1500 °/sec
Voltage(high)
3.0 V ~ 4.1 V
Voltage(low)
1.3 V ~ 2.0 V
Pulse duty
40 ~ 60 %

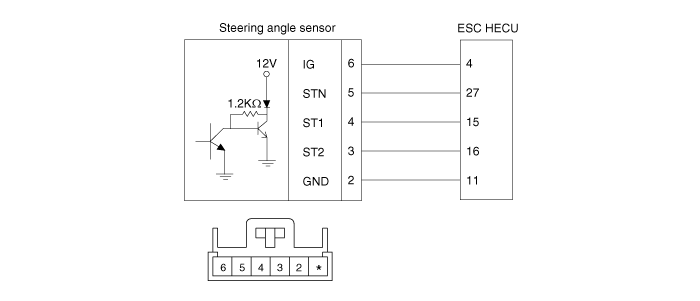

Circuit Diagram (Steering Wheel Speed Angle Sensor)


Calibration (Setting up the zero angle)
Steering Wheel Angle Sensor of a absolute angle type (CAN type) measures the angle under the standard of the zero angle set.
Calibration must be performed as following cases.
-
Replacement of the Steering Wheel Angle Speed Sensor
-
Replacement or repair of the Steering column
-
Detection of DTC codes (C1260, C1261)
-
Replacement of the yaw-rate and G sensor
-
Replacement of HECU
Calibration procedure
Perform wheel alignment and stand the steering wheel in a line within ±5°error.


1.
Connect the GDS.(CAN line or OBD connector)
2.
Turn ignition switch on.
3.
Press calibration button of the Steering Wheel Angle Sensor.
4.
HECU calibration procedure is performed.
(Calibration records, DTC codes erasure)


5.
Turn ignition switch off after calibration procedure.
6.
Confirm success or failure of calibration.
A.
Warning lamp must not be lighted when driving test (Turning left and right).
B.
ESC lights ESC OFF warning lamp when making an error in comparison with values of other sensors.
