Kia Rio: Sunroof Components - Exterior - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: Sunroof Components

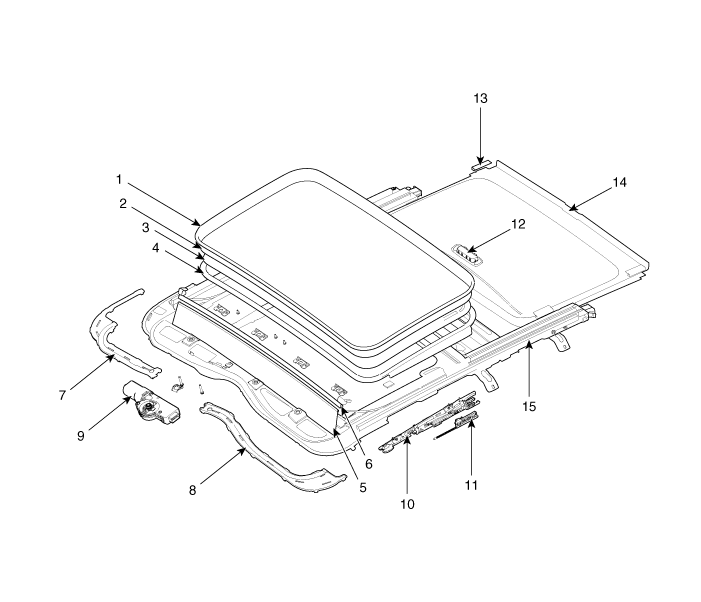

1 . Glass panel assembly
2 . Glass panel
3 . Reinforcement glass
4 . Encapsulated glass panel
5 . Wind deflector net assembly
6 . Wind deflector beam
7 . Plate cover [RH]
8 . Plate cover [LH]
9 . Motor assembly
10 . Mechanism assembly
11 . Drive cable assembly
12 . Handle sunshade bracket
13 . Sunshade slide pad
14 . Sunshade assembly
15. Sunroof frame assembly
