Kia Rio: Towing - What to do in an emergency - Kia Rio UB 2012-2019 Owners ManualKia Rio: Towing

Towing service


Towing service

If emergency towing is necessary, we recommend having it done by an authorized Kia dealer or a commercial tow-truck service. Proper lifting and towing procedures are necessary to prevent damage to the vehicle.

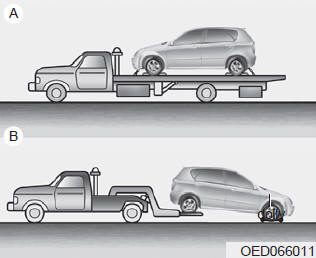

The use of wheel dollies or flatbed is recommended. It is acceptable to tow the vehicle with the rear wheels on the ground (without dollies) and the front wheels off the ground.

If any of the loaded wheels or suspension components are damaged or the vehicle is being towed with the front wheels on the ground, use a towing dolly under the front wheels.

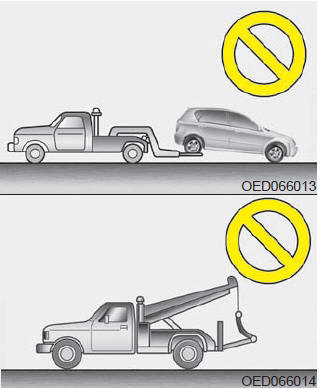

When being towed by a commercial tow truck and wheel dollies are not used, the front of the vehicle should always be lifted, not the rear.

CAUTION - Towing


CAUTION - Towing

When towing your vehicle in an emergency without wheel dollies :

1. Set the ignition switch in the ACC position.

2. Place the transaxle shift lever in N (Neutral).

3. Release the parking brake.

CAUTION - Towing gear position

Always place the transaxle shift lever in N (Neutral) when towing your vehicle. Failure to place the transaxle shift lever in N (Neutral) may cause internal damage to the transaxle.

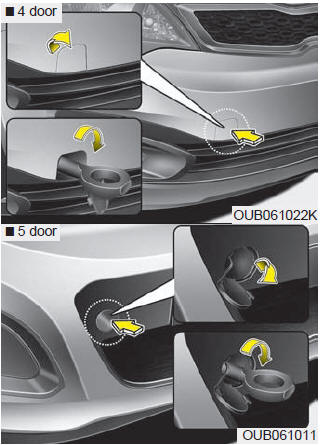

Removable towing hook (front) (if equipped)


Removable towing hook (front) (if equipped)

1.Remove the towing hook from the tool case.

2.Remove the hole cover pressing the lower part of the cover on the front bumper.

3.Install the towing hook by turning it clockwise into the hole until it is fully secured.

4.Remove the towing hook and install the cover after use.

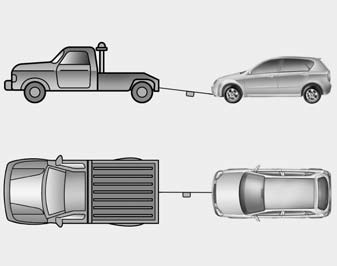

Emergency towing


Emergency towing

If towing is necessary, we recommend you have it done by an authorized Kia dealer or a commercial tow truck service.

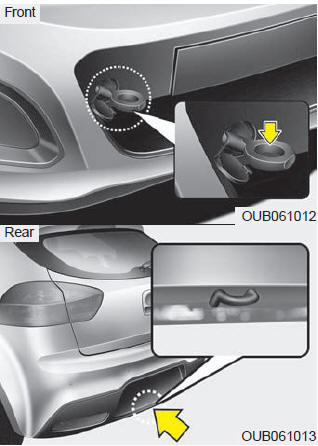

If towing service is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing hook under the front (or rear) of the vehicle. Use extreme caution when towing the vehicle. A driver must be in the vehicle to steer it and operate the brakes.

Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speeds.

Also, the wheels, axles, power train, steering and brakes must all be in good condition.


Emergency towing precautions

If the car is being towed with all four wheels on the ground, it can be towed only from the front. Be sure that the transmission is in neutral. Be sure the steering is unlocked by placing the ignition switch in the ACC position. A driver must be in the towed vehicle to operate the steering and brakes.

CAUTION - Automatic transaxle

If you have a flat tire (Tire mobility kit, if equipped)
For safe operation, carefully read and follow the instructions in this manual before use. (1) Compressor (2) Sealant bottle The Tire Mobility Kit is a temporary fix to the tire and the tire sho ...
