Kia Rio: Wheel Hub Nut Tightening Sequence - Tires/Wheels - Suspension System - Kia Rio UB 2012-2019 Service ManualKia Rio: Wheel Hub Nut Tightening Sequence

Tighten the hub nuts as follows.
Tightening torque :
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)




•
When using an impact gun, final tightening torque should be checked using a torque wrench.
•
A wheel that is not the correct size may adversely affect wheel and bearing life, braking and stopping abilities, handling characteristics, ground clearance, body-to-tire clearance, snow chain clearance, speedometer and odometer calibration, headlight aim and bumper height.
Run out inspection
1.
Jack up the vehicle.
2.

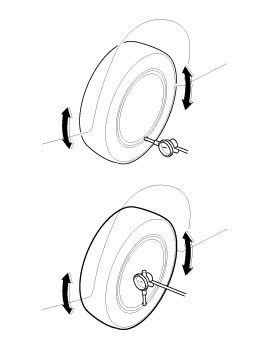

Measure the wheel Run-out by using a dial indicator as illustration below.
Run-out
 Aluminum
 Steel
Radial mm(in.)
 Below 0.3(0.012)
 Below 1.4(0.055)
Lateral mm(in.)
 Below 0.3(0.012)
 Below 0.9(0.035)

3.
If measured value exceeds the standard value, replace the wheel.
