Transaxle Control Module (TCM) Terminal Function


Transaxle Control Module (TCM) Description
Transaxle Control Module (TCM) is the automatic transaxle's brain. The module receives and processes signals from various sensors and implements a wide range of transaxle controls to ensu ...

Transaxle Control Module (TCM) Terminal Function

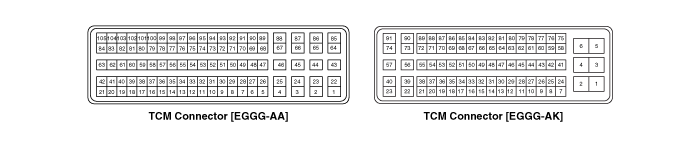

Connector [EGGG-AA] Pin Description Pin Description 22 Shift solenoid D (VFS-OD) 73 Inhibitor switch signal "S4" ...
