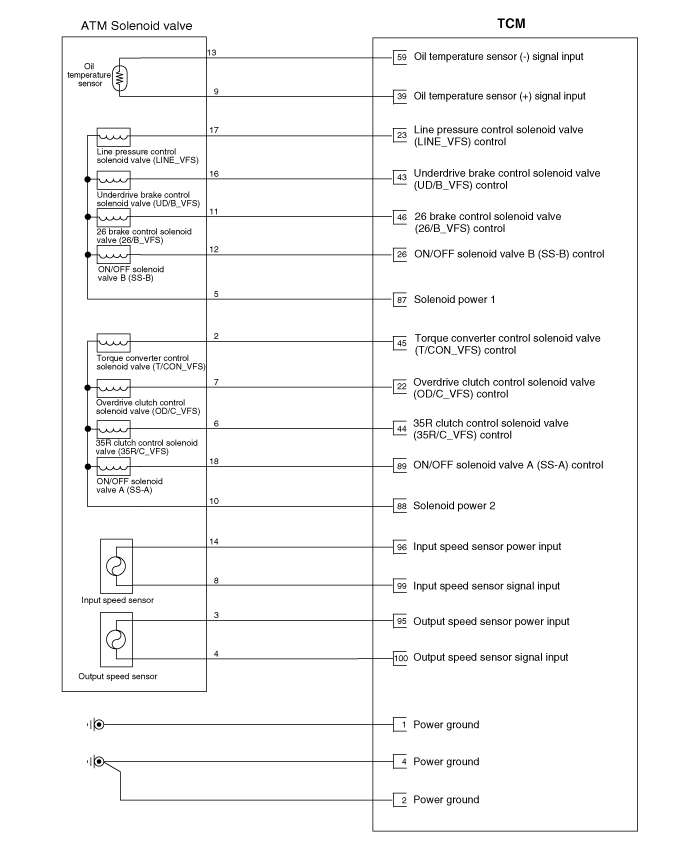

Kia Rio: Transaxle Control Module (TCM) Terminal input/ output signal Circuit Diagram - Automatic Transaxle Control System - Automatic Transaxle System - Kia Rio UB 2012-2020 Service ManualKia Rio: Transaxle Control Module (TCM) Terminal input/ output signal Circuit Diagram


Transaxle Control Module (TCM) Inspection


Transaxle Control Module (TCM) Terminal Function
Connector [EGGG-AA] Pin Description Pin Description 22 Shift solenoid D (VFS-OD) 73 Inhibitor switch signal "S4" ...

Transaxle Control Module (TCM) Inspection
TCM Problem Inspection Procedure 1. TEST TCM GROUND CIRCUIT: Measure resistance between TCM and chassis ground using the backside of TCM harness connector as TCM side c ...
