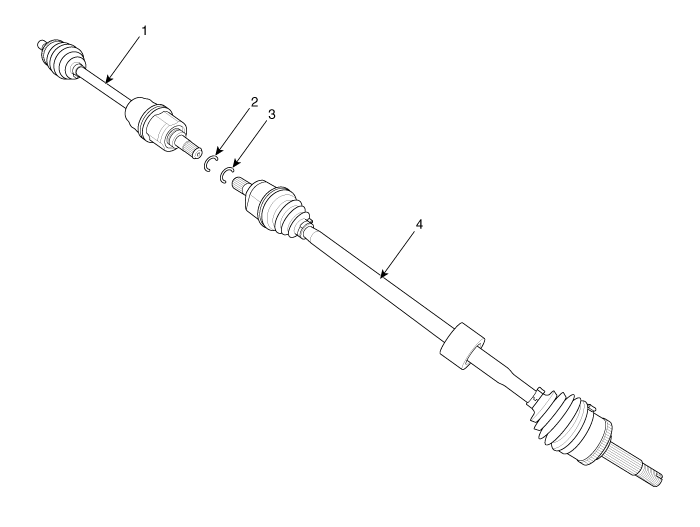

Kia Rio: Front Driveshaft Component - Driveshaft Assembly - Driveshaft and axle - Kia Rio UB 2012-2019 Service ManualKia Rio: Front Driveshaft Component


1. Driveshaft (LH)
2. Circlip
3. Circlip
4. Driveshaft (RH)
