Kia Rio: 5Door Interior - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2026 Service ManualKia Rio: 5Door Interior

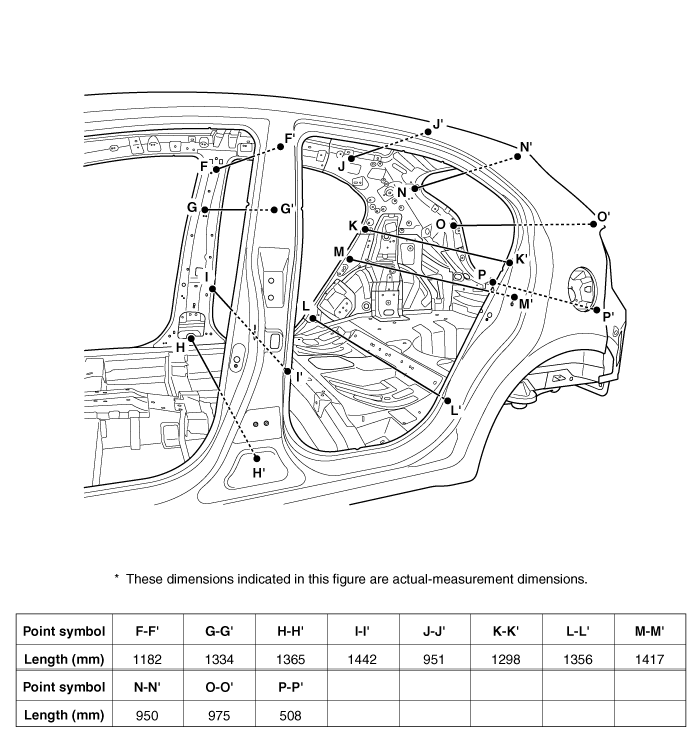

5Door Rear Body

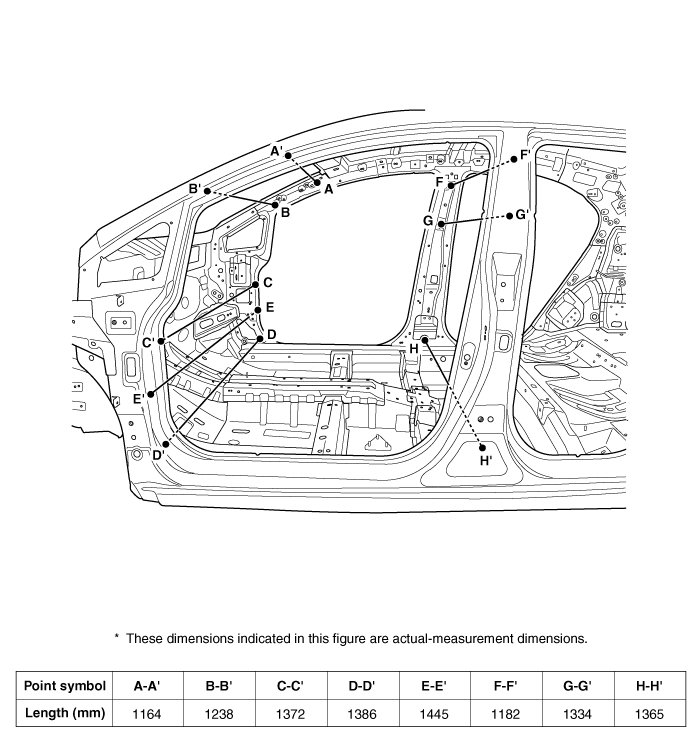

5Door Side Body C
Side outer panel notch Side outer panel notch Side outer panel notch ...

5Door Rear Body
Side outer panel rear corner Tail gate hinge mounting hole (Ø14) Tail gate hinge mounting hole (Ø1 ...
