Kia Rio: BCM Overview
The Body Control Module (A) supplies vehicle occupants with visual and
audible information and controls various vehicle functions.
To provide and receive information, the module is interfaced to the vehicle's
CAN bus communications network.
The BCM provides the following features :
| - |
Door lock control
|
| - |
Burglar alarm control
|
| - |
Decayed room lamp control
|
| - |
Tailgate open control
|
| - |
Warning(Buzzer and indicator) control
|
| - |
Wiper control (Front/ Rear)
|
| - |
Lamp control (Tail, Head Lamp, Fog lamp, Room lamp, Rear Fog lamp,
DRL, SBL Etc.)
|
| - |
Defroster cotrol
|
| - |
Burglar Alarm Horn control
|
| - |
Panic control
|
| - |
MTS control
|
| - |
RPAS control
|

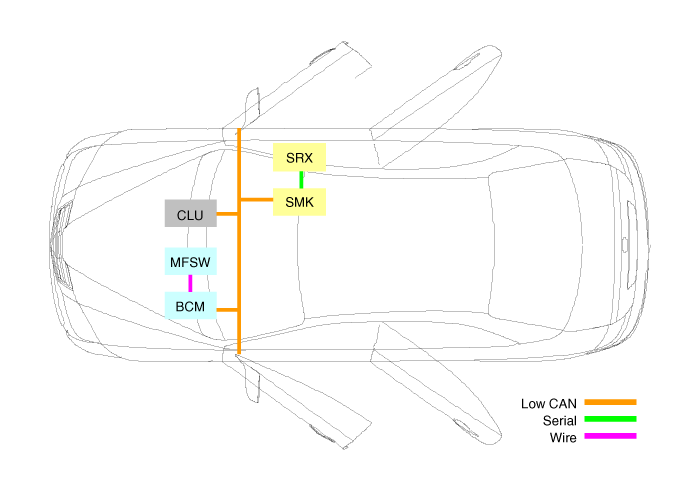

Communication Network
| SRx |
Stand-alone RF Receiver |
| SMK |
Smart Key unit |
| CLU |
Cluster |
| MFSW |
Multi-Function Switch |
| BCM |
Body Control Module |
| CAN |
Controller Area Network |
Circuit Diagram
...
Function
Function
Description
Front Washer & Wiper
-
Settings: IGN2 On,
-
Acti ...
