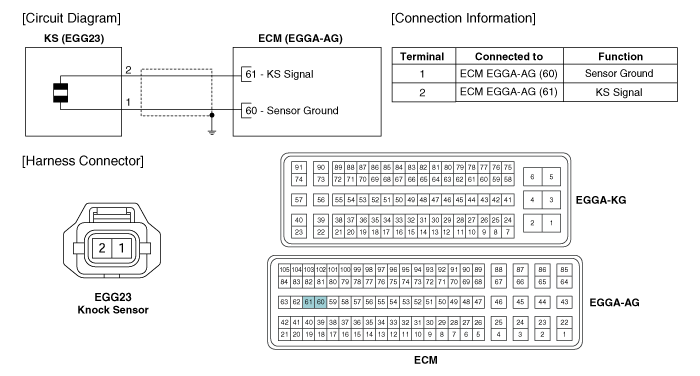

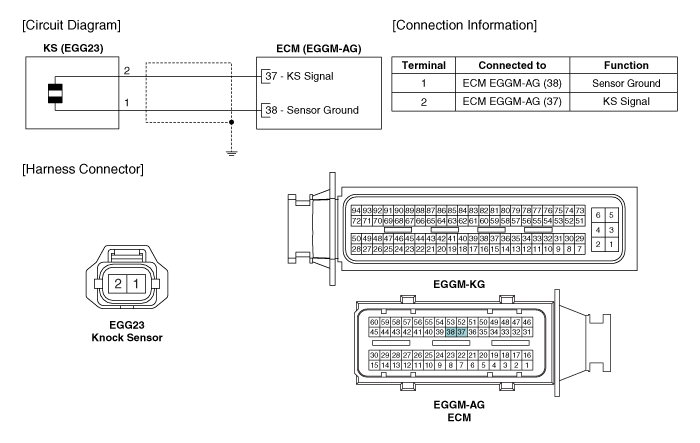

Kia Rio: Circuit Diagram

Specification

Item Specification Capacitance (pF) 950 ~ 1,350 Resistance (MΩ) 4.87 ...

Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold (Refer to “Intake And Exhaus ...

See also:

Steering Gear box Components
1. Tie-rod end 2. Lock nut 3. Bellows clip 4. Bellows 5. Tie rod 6. Rack bar 7. Dust packing 8. Dust cap 9. Oil seal 10. Pinion plug 11. Pinion assembl ...

ECM Terminal And Input/Output signal [A/T]
ECM Terminal Function (A/T) Connector [EGGA-AG] Pin No. Description Connected to 1 Injector (Cylinder #1) [High] control output ...

Wipers & Washers
A : Wiper speed control (front) HI – High wiper speed LO – Low wiper speed INT – Intermittent wipe AUTO– Automatic control wipe OFF – Off MIST – Single wipe B : Intermit ...
