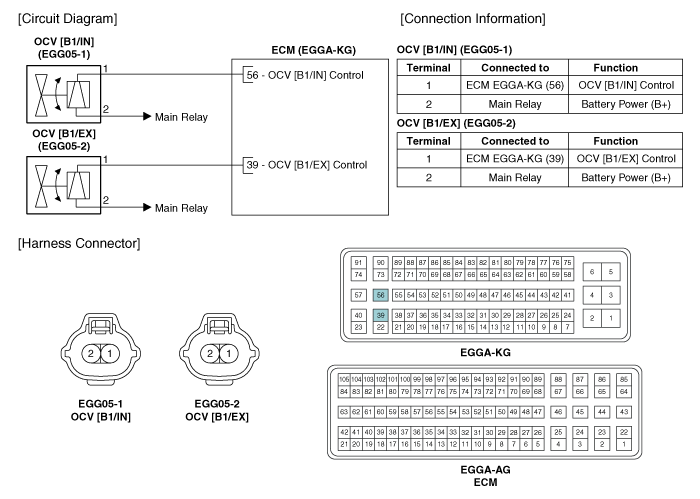

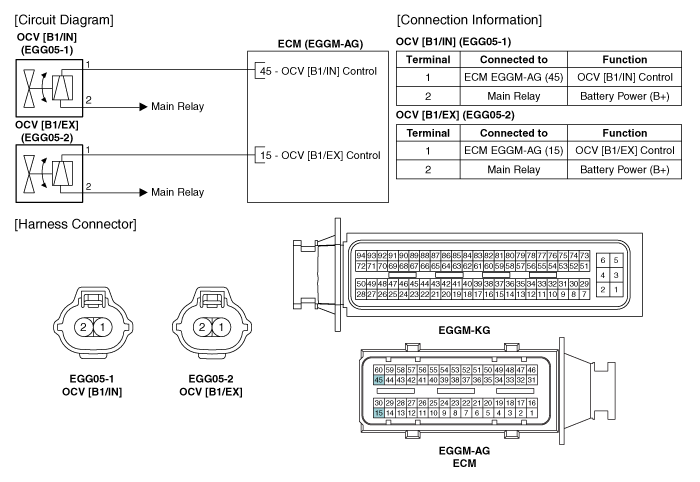

Kia Rio: Circuit Diagram

Specification

Item Specification Coil Resistance (Ω) 6.9 ~ 7.9 [20°C(68°F)] ...

Inspection

1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV termina ...
