Kia Rio: Component Location Index

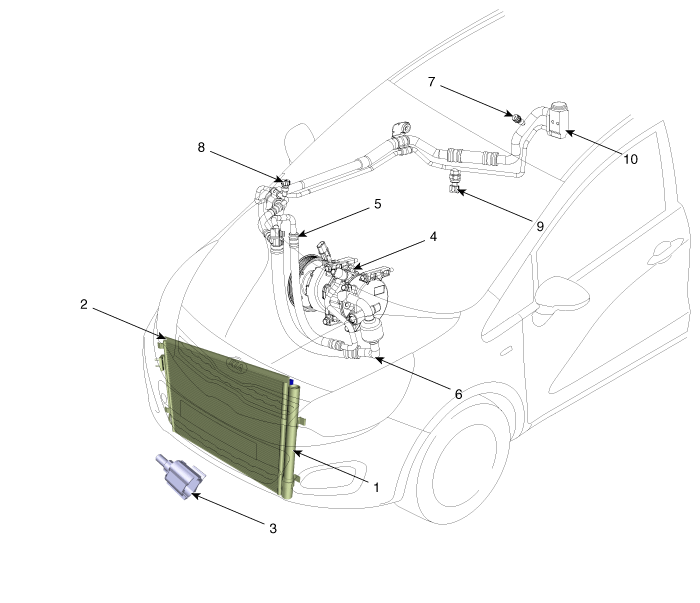

| Engine Room |
| 1. Receiver Drier 2. Condenser 3. Ambient Temperature Sensor 4. Compressor 5. Discharge Hose |
6. Suction & Liquid Tube Assembly 7. Service Port (Low Pressure) 8. Service Port (High Pressure) 9. A/C Pressure Transducer (APT) 10. Expansion Valve |
Refrigerant System Service Basics
Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet
the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioning
system.
...
Interior
1. Auto Defogging Sensor
2. Photo Sensor
3. Heater & A/C controller (MANUAL)
4. Heater & A/C controller (FATC)
5. In-car Sensor
6. Heater & Blower Unit
7. ...
