Kia Rio: Components - Alternator - Charging System - Engine Electrical System - Kia Rio UB 2012-2026 Service ManualKia Rio: Components

[AMS type (OAD)]

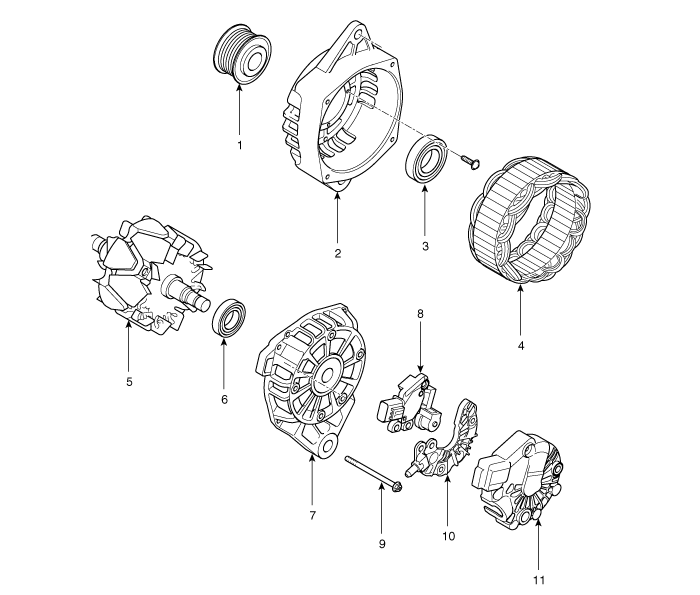

1. OAD (Overrunning Alternator Decoupler)
2. Front Bracket
3. Front Bearing
4. Stator
5. Rotor
6. Rear Bearing
 7. Rear Bracket
8. Brush Holder Assembly
9. Through Bolt
10. Rectifier Assembly
11. Rear Cover

[ISG/AMS type (NON-DAD)]

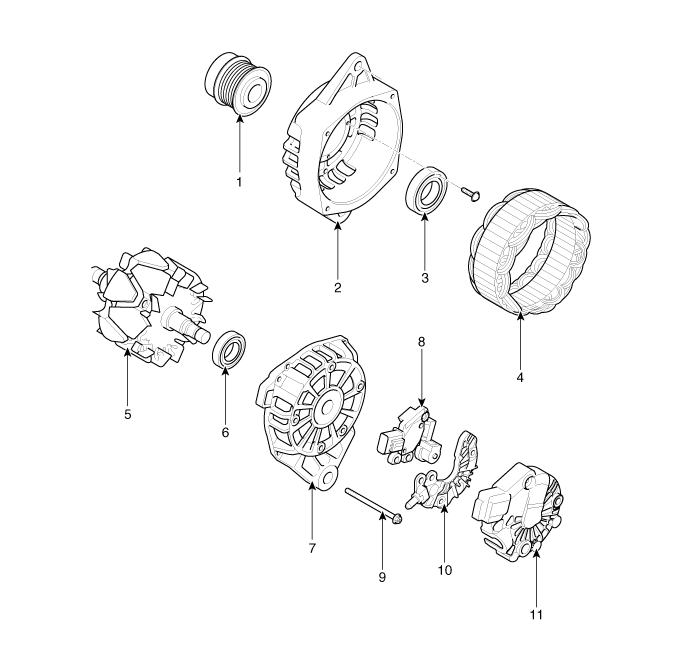

1. Drive belt pulley
2. Front Bracket
3. Front Bearing
4. Stator
5. Rotor
6. Rear Bearing
 7. Rear Bracket
8. Brush Holder Assembly
9. Through Bolt
10. Rectifier Assembly
11. Rear Cover

Specification
[AMS type (NON-OAD)] Item Specification Rated voltage 13.5V, 90A Speed in use 1,000 ~ 18,000 rpm Voltage regulator IC ...

Circuit Diagram
...
