Kia Rio: Components - Front Disc Brake - Brake System - Kia Rio UB 2012-2025 Service ManualKia Rio: Components

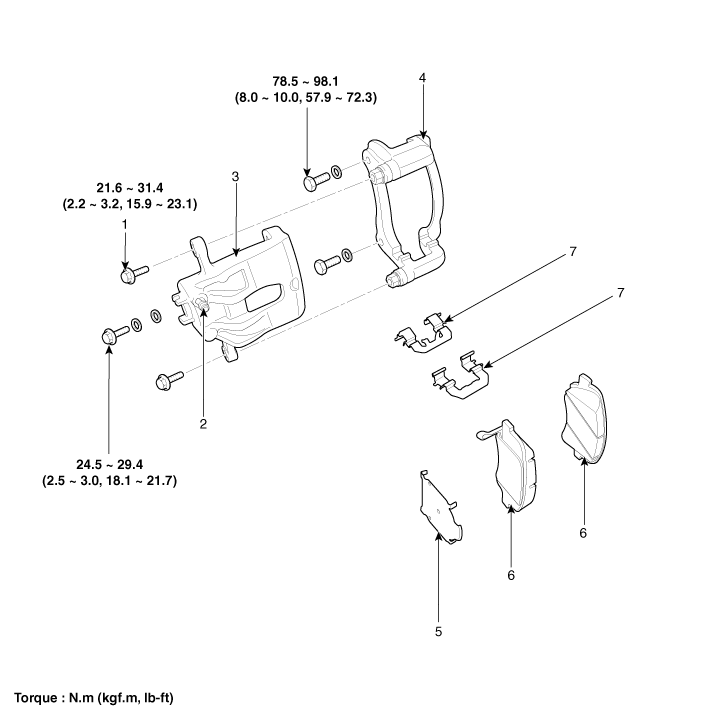

1. Guide rod bolt
2. Bleed screw
3. Caliper body
4. Caliper carrier
5. Inner pad shim
6. Brake pad
7. Pad retainer

Front Disc Brake
...

Removal
1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~79.6 lb-ft) ...
