Kia Rio: Components Location - ISG (Idle Stop & Go) System - Engine Control / Fuel System - Kia Rio UB 2012-2025 Service ManualKia Rio: Components Location


1. Battery sensor
2. Brake Booster Vacuum Pressure Sensor (BBVPS)
3. AGM battery
4. DC/ DC Converter (LDC)
5. ISG OFF Switch
6. Alternator
7. Starter
8. Brake switch
9. Door switch
10. Seat belt switch
11. Hood switch
12. Electric Oil Pump (EOP)

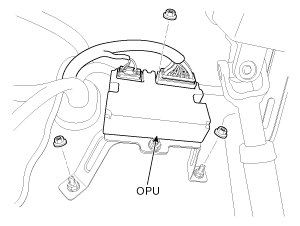

13. Oil Pump Unit (OPU)

1. Battery sensor
3. AGM battery
2. Brake Booster Vacuum Pressure Sensor (BBVPS)



4. DC/ DC Converter (LDC)
5. ISG OFF Switch



6. Alternator
7. Starter



8. Brake switch
9. Door switch



10. Seat belt switch
11. Hood switch



12. Electric Oil Pump (EOP)
13. Oil Pump Unit (OPU)
