Kia Rio: ESC Control Module Components - ESC(Electronic Stability Control) System - Brake System - Kia Rio UB 2012-2025 Service ManualKia Rio: ESC Control Module Components

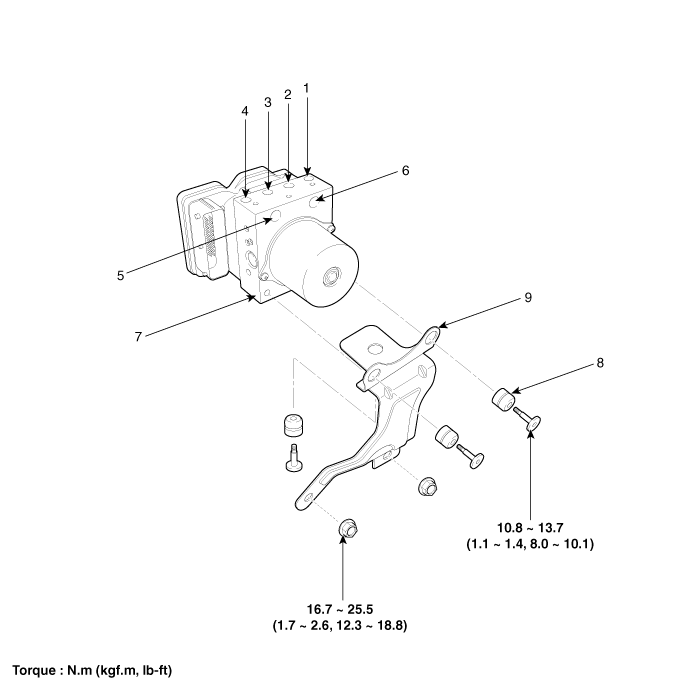

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
6. MC1
7. ESC control module (HECU)
8. Damper
9. Bracket

EBD(Electronic Brake-force Distribution) Operation
The Electronic Brake force Distribution (EBD) system as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels. It further utilizes the efficiency ...

ESC Control Module Removal
1. Turn ignition switch OFF. 2. Pull up the lock of the HECU connector (A), and then disconnect the connector. ...
