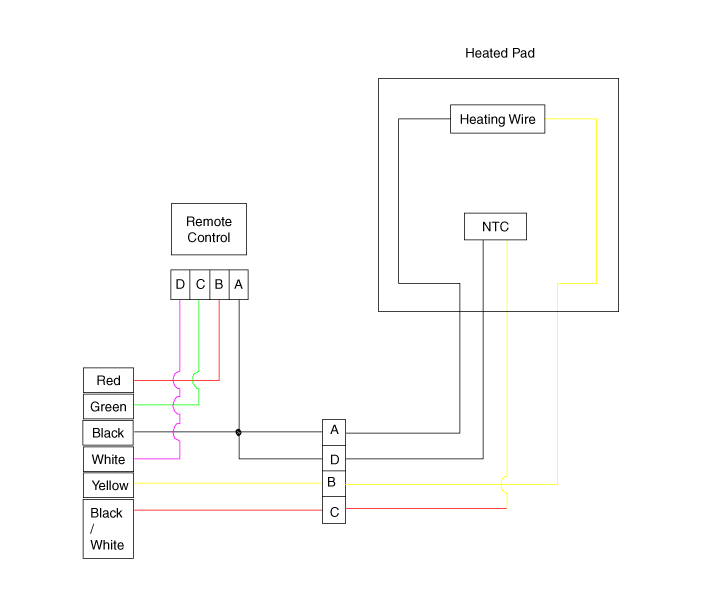

Kia Rio: Heated Steering wheel System Circuit Diagram - Steering wheel - Steering System - Kia Rio UB 2012-2026 Service ManualKia Rio: Heated Steering wheel System Circuit Diagram

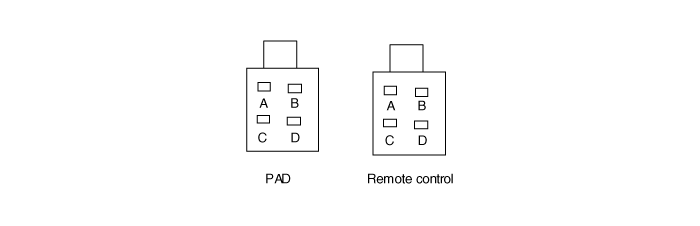

Terminal Function
Housing
Pin
Function
Wire color
Pad
A
GND
Back
B
HEATER
Yellow
C
NTC+
Back / Yellow
D
NTC-
Back
Remote
control
A
GND
Back
B
BAT
Red
C
LED
Green
D
SWITCH
White

Heated Steering wheel Description
Heated pads to grip the steering grip makes the fever. Heated control unit Heated pad Specifications Item Specification Voltage 13.5 V ...

Heated Steering wheel Inpection
1. Measure a resistance of NTC and Heated pad. A. NTC resistance(Black / Yellow, Black) - 10.0 kΩ ± 10% (25°C(77°F)) ...
