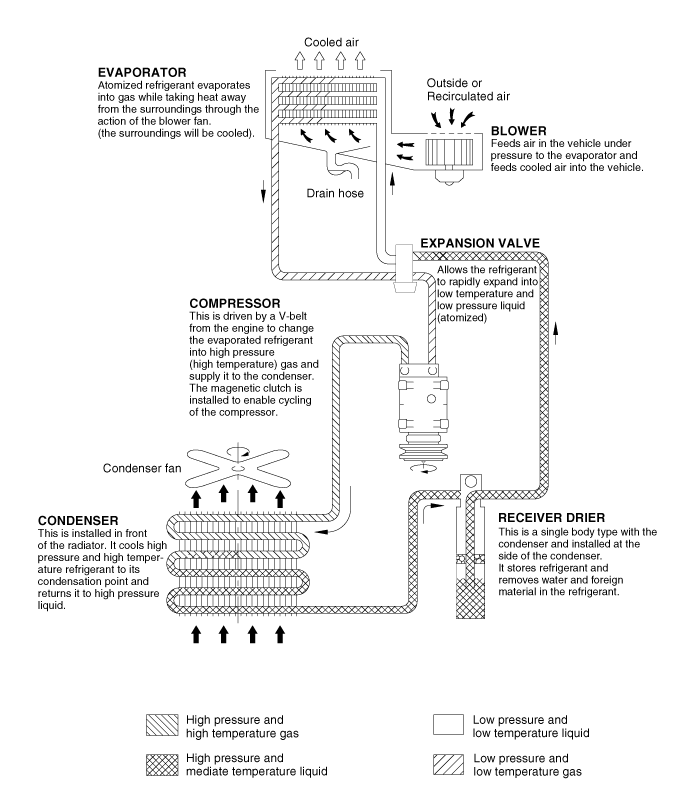

Kia Rio: Refrigeration Cycle

Instructions

When Handling Refrigerant 1. R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the r ...

Air Outlet and Air Flow

The mode selection switch controls the direction of the air flow through the ventilation System Air Flow Symbol Outlet Description ...

See also:

Dimensions Projected
1. These are the dimensions measured when the measurement points are projected from the vehicle's surface, and are the reference dimensions used for used for body ...

Circuit Diagram
(M/T) (A/T) ...

Mode Control Actuator Description
The mode control actuator is located at the heater unit. It adjusts position of mode door by operating mode control actuator based on signal of A/C control unit. Pressing mode select switch ...
