Kia Rio: Signal Waveform - Injector - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2023 Service ManualKia Rio: Signal Waveform

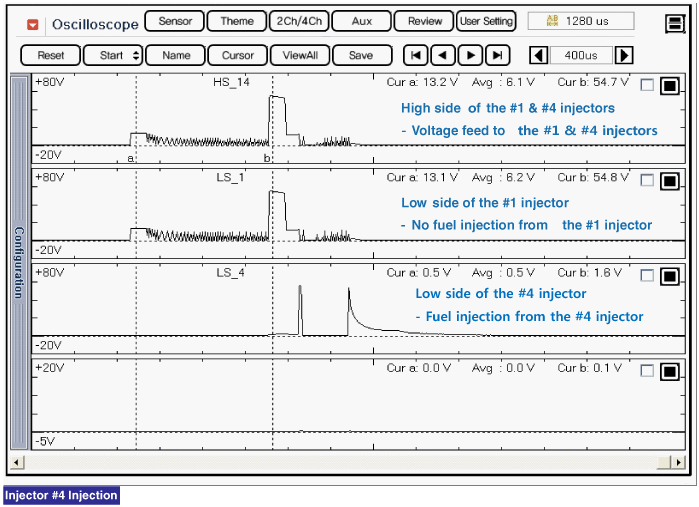

The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is from the low side (ground side) of the #1 injector and the bottom waveform is from the low side of the #4 injector.
The middle waveform is the same as the top waveform because there is no ground for the circuit. With no current flowing in the circuit, the #1 injector is not energized and fuel does not flow.
The bottom waveform shows that ground is supplied and there is a voltage drop across the #4 injector. With current flowing in the circuit, the #4 injector is energized and fuel flows.

Circuit Diagram


Specification
Item Specification Coil Resistance (Ω) 1.5 [20°C(68°F)] ...

Circuit Diagram
(M/T) (A/T) ...
