Press the key

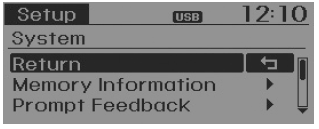

Select [System]
Select menu through
TUNE knob

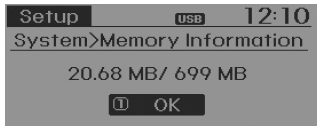

Memory Information
Displays currently used memory and total system memory.
Select [Memory Information]
OK
The currently used memory is displayed on the left side while the total system memory is displayed on the right side.
Prompt Feedback
This feature is used to change voice command feedback between Normal and Expert modes.
Select [Prompt Feedback] Set through
TUNE knob

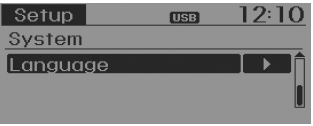

Language
This menu is used to set the display and voice recognition language.

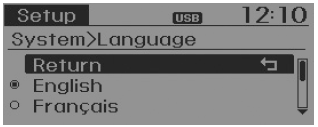

Select [Language] Set through
TUNE knob
❈ The system will reboot after the language is changed.
❈ Language support by region English, French and Spanish

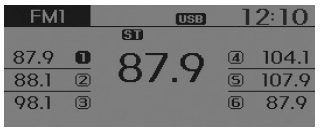

Radio : FM, AM OR sirius
SEEK
Press the
key
Preset SEEK
Press the
key
~
SCAN
Press the
key
Selecting through manual search
Turn the
TUNE knob left/right to adjust the frequency.
MENU
Within key
are the A.Store (Auto Store).

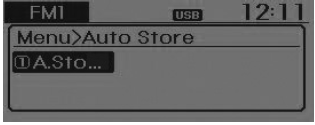

A.Store
Press the
key
Set [A.Store] through
TUNE knob or
key.
Saves broadcasts with superior reception to
~
keys.If no frequencies are
received, then the most recently received frequency will be broadcast.
SIRIUS Satellite Radio information (if equipped)
Satellite Radio channels:
SIRIUS Satellite Radio has over 130 channels, including 69 channels of 100% commercial-free music, plus sports, news, talk and entertainment available nationwide in your vehicle.
For more information and a complete list of SIRIUS Satellite Radio channels, visit siriusxm.com in the United States, sirius-canada.ca in Canada, or call SIRIUS at 1-888-539-7474.
Satellite Radio reception factors:
To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system.
Like AM/FM, there are several factors that can affect satellite radio reception performance:
Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:
For information on extended subscription terms, contact SIRIUS at 1-888-539-7474.
NOTE:
Satellite Radio requires SIRIUS® compatible receiver and a subscription service fee after trial period. Vehicles without a factory-installed radio receiver require hardware purchase and installation. Please see your dealer for further details. All fees and programming subject to change. Subscriptions governed by the SIRIUS Terms & Conditions available at www.siriusxm.com / service terms. Available only in the 48 contiguous United States and the District of Columbia. Service available in Canada; see www.siriuscanada.ca Kia shall not be responsible for any such programming changes.
Satellite Radio Electronic Serial Number (ESN) :
This 12-digit Satellite Serial Number is needed to re-activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS.
Components
1. Receiver
2. TPMS Sensor (S1)
3. TPMS Sensor (S4)
4. TPMS Sensor (S2)
5. TPMS Sensor (S3)
6. Tread Lamp
...
Specifications
Item
Requirement
Remark
Rated voltage
DC 12V
Shall activate normally in these range.
Operating voltage range
DC 9 ~ 16V
...
Inspection
[Rotor]
1.
Check that there is continuity between the slip rings (C).
2.
Check that there is no continuity between the slip ...
