Kia Rio: Trunk Lid Adjustment

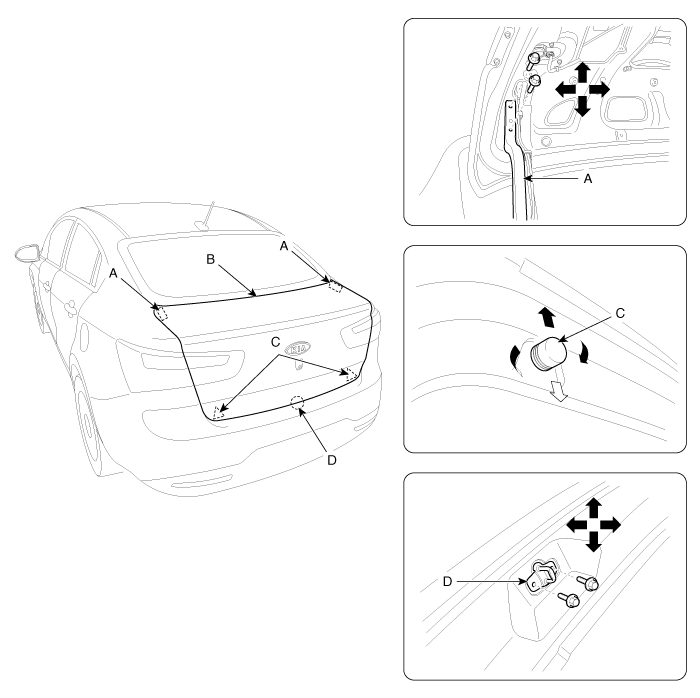

| 1. |
After loosening the trunk lid hinge (A) mounting bolt, adjust
the trunk lid by moving it up or down, or right or left.
|
| 2. |
Adjust the trunk lid height by turning the trunk lid overslam
bumpers (B).
|
| 3. |
After loosening the striker (C) mounting bolts, adjust the striker
by moving it up or down, or right or left.
|
