Kia Rio: 4Door Under Body

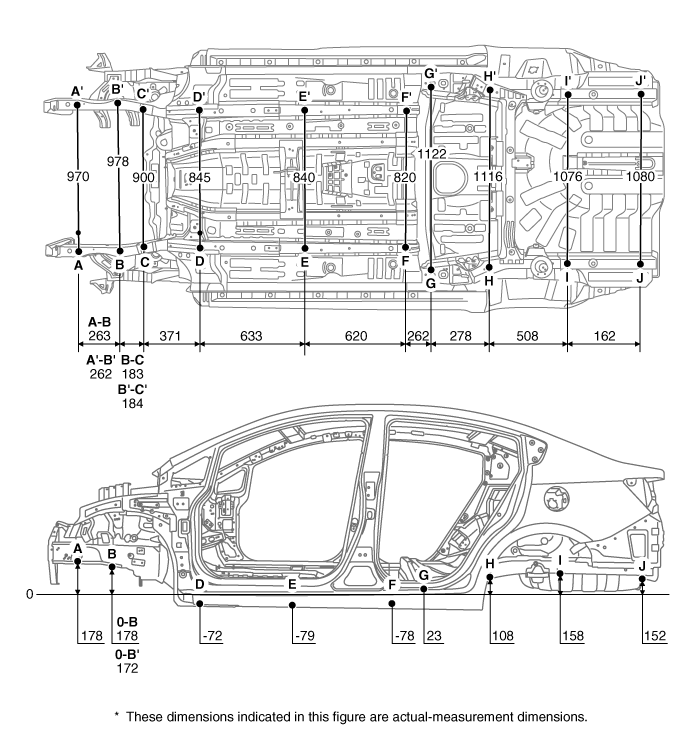

| Projected Dimensions |
|
|
|
|
| Front side member tooling hole (Ø6.6) |
Front side member tooling hole (Ø6.6) |
Side cover mounting hole (Ø8.6) |
|
|
|
|
| Sub frame mounting bolt |
Front side member tooling hole (Ø11) |
Center floor side member tooling hole (Ø10) |
|
|
|
|
| Center floor side member extension tooling hole (Ø6)
|
Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø10) |
|
|
|
|
| Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø8) |
Rear floor side member tooling hole (Ø25) |

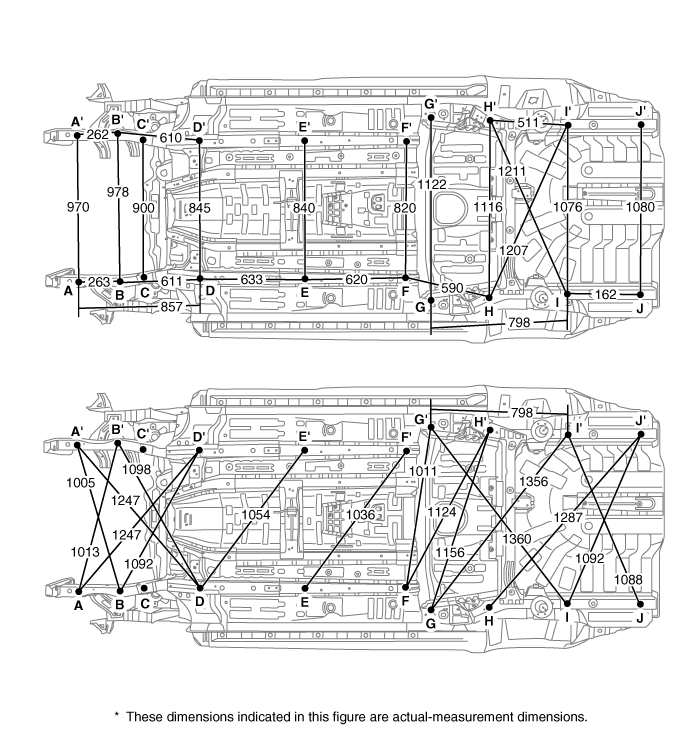

| Actual-Measurement Dimensions |
|
|
|
|
| Front side member tooling hole (Ø6.6) |
Front side member tooling hole (Ø6.6) |
Side cover mounting hole (Ø8.6) |
|
|
|
|
| Sub frame mounting bolt |
Front side member tooling hole (Ø11) |
Center floor side member tooling hole (Ø10) |
|
|
|
|
| Center floor side member extension tooling hole (Ø6)
|
Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø10) |
|
|
|
|
| Rear floor side member tooling hole (Ø10) |
Rear floor side member tooling hole (Ø8) |
Rear floor side member tooling hole (Ø25) |
4Door Rear Body
Side outer panel rear corner
Side outer panel rear corner
Side outer panel rear corner
...
5Door Front Body A
Hood hinge mounting hole (Ø11)
Fender apron upper member tooling hole (Ø6.6)
Front shock absorber hou ...
