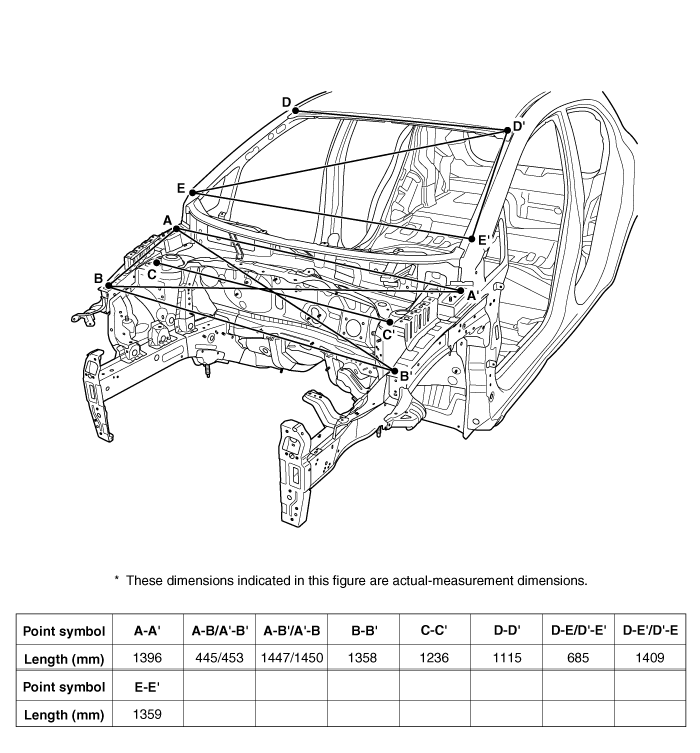

Kia Rio: 5Door Front Body A - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: 5Door Front Body A





Hood hinge mounting hole (Ø11)

Fender apron upper member tooling hole (Ø6.6)
Front shock absorber housing cover tooling hole (Ø7)




Front shock absorber housing cover tooling hole (Ø7)
Roof panel front corner

Front pillar outer panel corner


4Door Under Body
Projected Dimensions Front side member tooling hole (Ø6.6) Front side member tooling hole (Ø6.6) ...

5Door Front Body B
Hood hinge mounting hole (Ø11) Fender apron upper member tooling hole (Ø6.6) Engine mounting hole (&O ...
