Kia Rio: 5Door Actual-Measurement Dimensions - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2020 Service ManualKia Rio: 5Door Actual-Measurement Dimensions

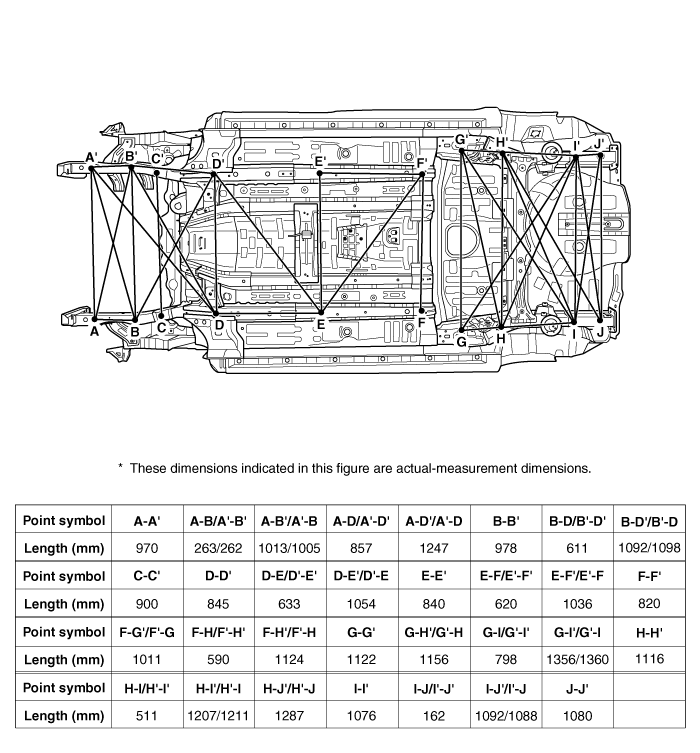

Front side member tooling hole (Ø6.6)

Front side member tooling hole (Ø6.6)

Side cover mounting hole (Ø8.6)




Sub frame mounting bolt

Front side member tooling hole (Ø11)

Center floor side member tooling hole
(Ø10)




Center floor side member extension tooling hole (Ø6)
Rear floor side member tooling hole
(Ø10)
Rear floor side member tooling hole
(Ø10)




Rear floor side member tooling hole
(Ø10)
Rear floor side member tooling hole
(Ø8)
Rear floor side member tooling hole
(Ø25)

5Door Projected Dimensions
Front side member tooling hole (Ø6.6) Front side member tooling hole (Ø6.6) Side cover mounting hol ...
