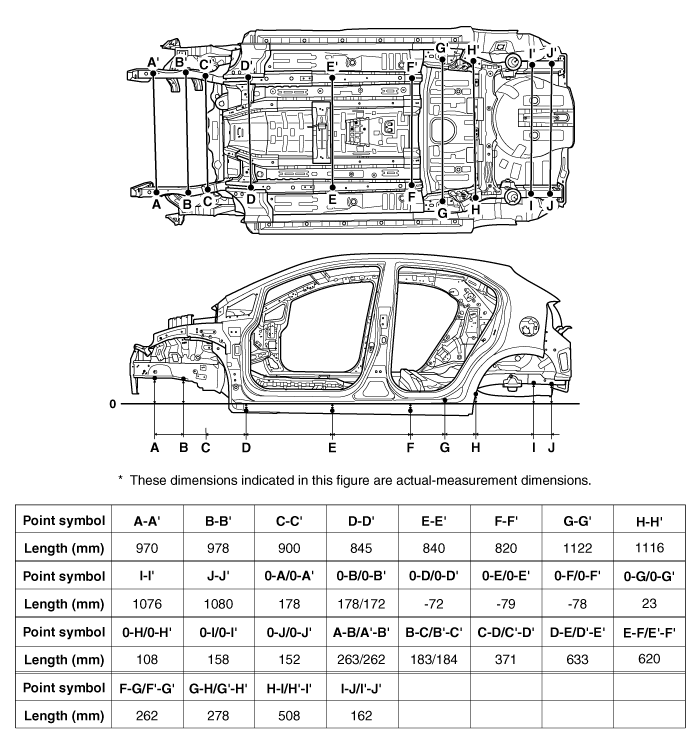

Kia Rio: 5Door Projected Dimensions - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2021 Service ManualKia Rio: 5Door Projected Dimensions





Front side member tooling hole (Ø6.6)

Front side member tooling hole (Ø6.6)

Side cover mounting hole (Ø8.6)




Sub frame mounting bolt

Front side member tooling hole (Ø11)

Center floor side member tooling hole
(Ø10)




Center floor side member extension tooling hole (Ø6)
Rear floor side member tooling hole
(Ø10)
Rear floor side member tooling hole
(Ø10)




Rear floor side member tooling hole
(Ø10)
Rear floor side member tooling hole
(Ø8)
Rear floor side member tooling hole
(Ø25)

5Door Rear Body
Side outer panel rear corner Tail gate hinge mounting hole (Ø14) Tail gate hinge mounting hole (Ø1 ...

5Door Actual-Measurement Dimensions
Front side member tooling hole (Ø6.6) Front side member tooling hole (Ø6.6) Side cover mounting hol ...
