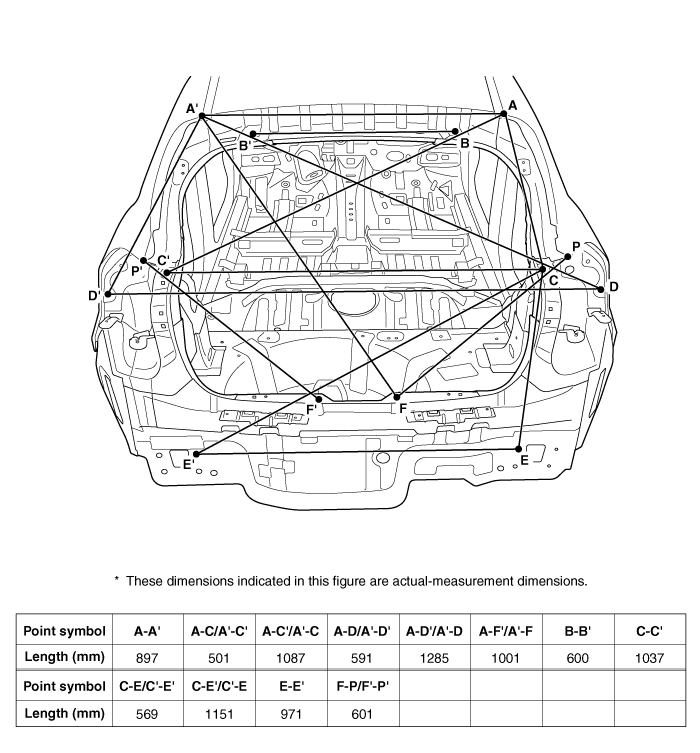

Kia Rio: 5Door Rear Body - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2020 Service ManualKia Rio: 5Door Rear Body





Side outer panel rear corner

Tail gate hinge mounting hole (Ø14)

Tail gate hinge mounting hole (Ø14)




Rear combination lamp mounting hole
(Ø6.6)
Rear combination lamp mounting hole
(8X12)
Rear bumper mounting hole (14X10)




Rear bumper mounting hole (Ø10)

Rear transverse trim mounting hole
(Ø8)
Side outer panel rear corner


5Door Interior
...

5Door Projected Dimensions
Front side member tooling hole (Ø6.6) Front side member tooling hole (Ø6.6) Side cover mounting hol ...
