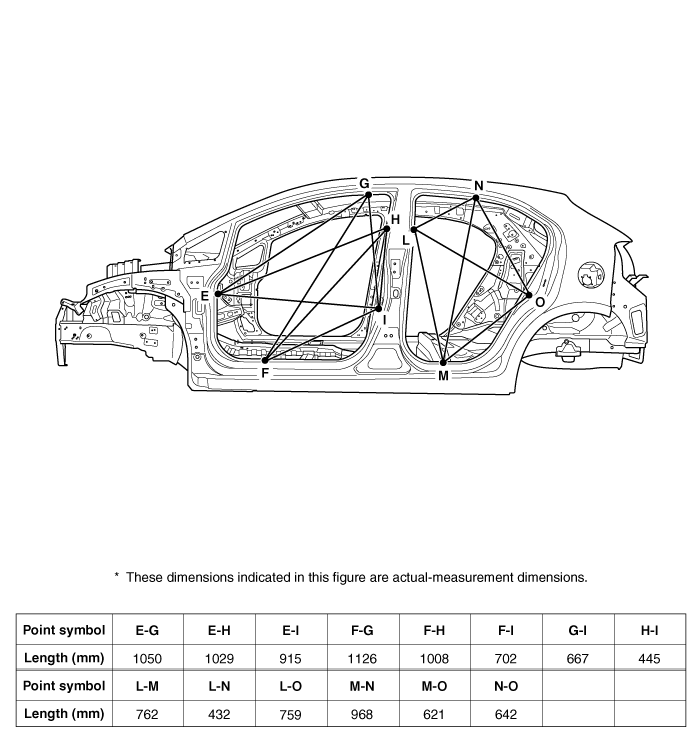

Kia Rio: 5Door Side Body B - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: 5Door Side Body B





Side outer panel notch

Side outer panel notch

Side outer panel notch




Side outer panel notch

Front door switch mounting hole (Ø9)

Side outer panel notch




Side outer panel notch

Side outer panel notch

Rear door switch mounting hole (Ø9)


5Door Side Body A
Front side member tooling hole (Ø12) Fender apron upper member tooling hole (Ø12) Front door upper hing ...

5Door Side Body C
Side outer panel notch Side outer panel notch Side outer panel notch ...
