Kia Rio: Audio Unit Schematic Diagrams - Audio - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Audio Unit Schematic Diagrams

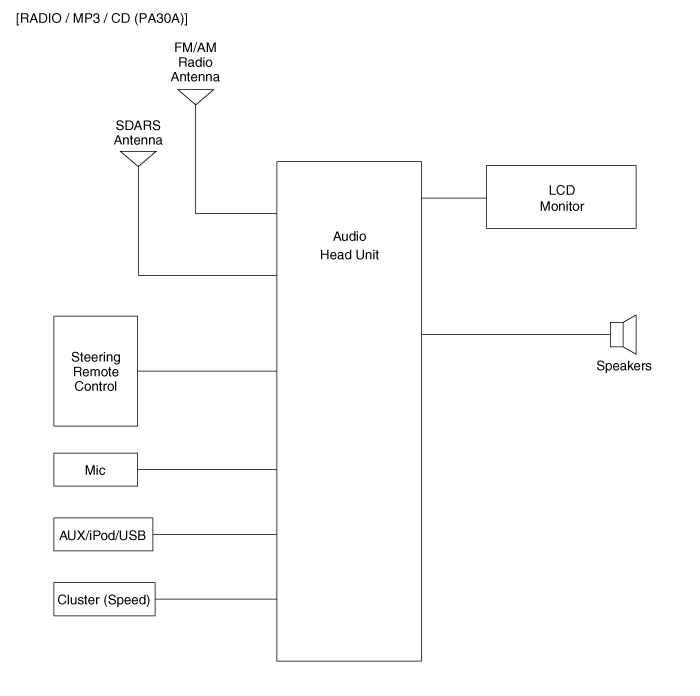

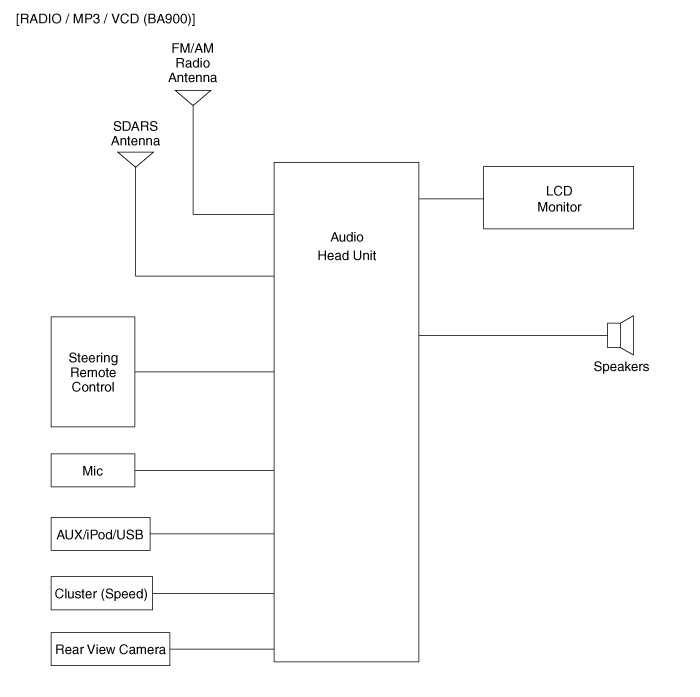

System Block Diagram


Audio Unit Description


Audio Unit Components
Terminal specification(PA30A) No Terminal Description Condition Specified Condition A1 Loudspeaker Rear Left+ Needed connection to the ca ...

Audio Unit Description
Introduction to CD Х If the temperature inside the car is too high, open the car windows for ventilation before using your car audio. Х It is ...

See also:

Troubleshooting
Symptom Suspect area Engine will not start or hard to start Vapor hose damaged or disconnected Engine struggles to start Malfunction of the Pu ...

Inspection
1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S termi ...

Component Location
1. PCB fuse & relay box (Head lamp low/ hi, Fuel pump #1, HAC, Engine control, Front wiper, Rain sensor, Blower, Cooling fan low/ hi, Horn, Buglar alarm horn, Start relay) ...
