Kia Rio: BJ Boot Components - Driveshaft Assembly - Driveshaft and axle - Kia Rio UB 2012-2019 Service ManualKia Rio: BJ Boot Components

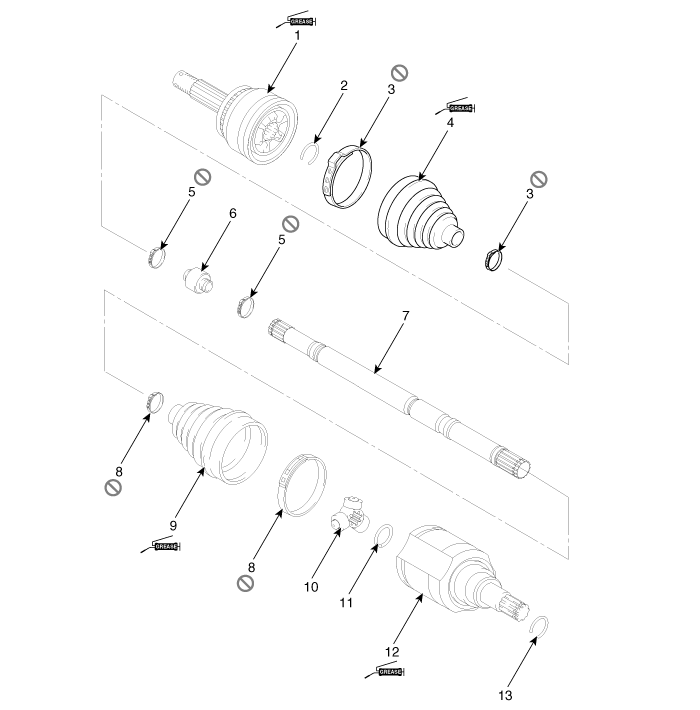

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

Dynamic Damper Installation
1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper. 2. Install the dynamic damper. ...

BJ Boot Replacement
1. Remove the front driveshaft. (Refer to DS group - Front Driveshaft) 2. Remove the TJ joint assembly. (Refer to DS group - TJ Joint) ...
