Kia Rio: Circuit Diagram - BCM (Body Control Module) - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram


BCM Overview


Input/ Output Description
Function I/O Connector No Description Active Remark Power B+ A1 Supply power to BCM Power   ...

BCM Overview
The Body Control Module (A) supplies vehicle occupants with visual and audible information and controls various vehicle functions. To provide and receive information, the module is interface ...

See also:

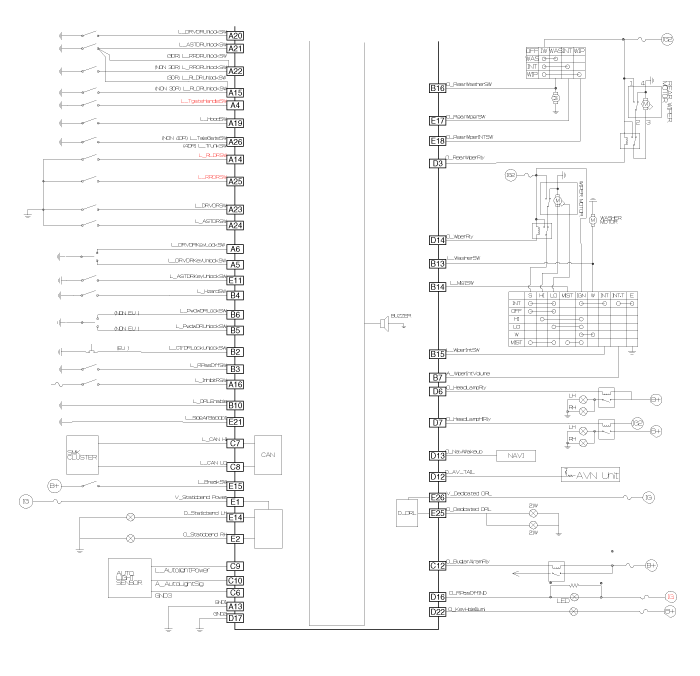

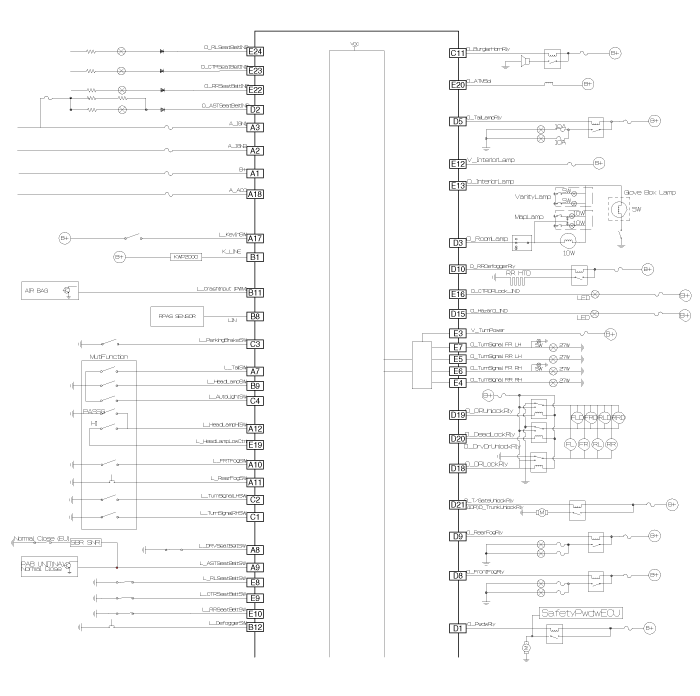

Schematic Diagram
Canister The Canister is filled with charcoal and absorbs evaporated fuel vapor from the fuel tank. The gathered fuel vapor in canister is drawn into the intake manifold by the ECM/PC ...

 Brake fluid
Checking the brake/clutch fluid level Check the fluid level in the reservoir periodically. The fluid level should be between MAX and MIN marks on the side of the reservoir. Before removing the r ...

Components Location
1. PCV valve 2. Canister 3. Purge control solenoid valve (PCSV) 4. Fuel tank pressure sensor (FTPS) 5. Canister close valve (CCV) 6. Fuel level sensor (FLS) 7. ORV ...
