Kia Rio: Component Location - Rear Wiper/Washer - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Component Location

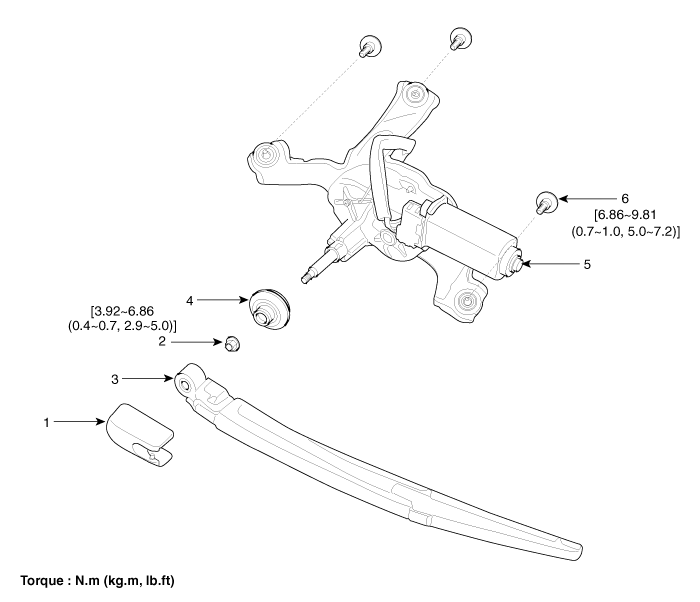

1. Head cap
2. Nut
3. Rear wiper arm & Blade
4. Packing (rubber)
5. Rear wiper motor assembly
6. Bolt

Rear Wiper/Washer
...

Rear Wiper Motor Removal
1. Detach the wiper cap (A) and remove a nut (B). 2. Remove the rear wiper arm & blade (A). 3. ...
