Kia Rio: Component Location (1) - Lighting System - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Component Location (1)

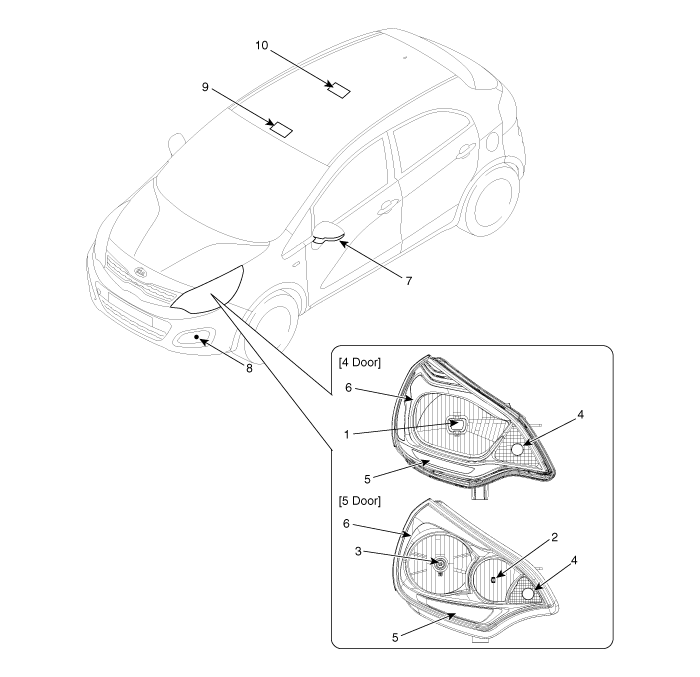

1. Head lamp (Low/ High)
2. Head lamp (Low)
3. Head lamp (High)
4. Turn signal lamp
5. DRL/ Position lamp
6. Side marker lamp
7. Turn signal lamp (Door mirror)
8. Front fog lamp
9. Overhead console lamp
10. Room lamp

Specification
Item Bulb Watt (W) Bulb Type Front Head lamp (High) 60/55 H1 Head lamp (Low) 60/55 H7 Position lmap ...

Component Location (2)
[4 Door] 1. Back up lamp 2. Turn signal lamp 3. Tail lamp/ Stop lamp 4. Tail lamp 5. Stop lamp 6. Side marker lamp 7. High mounted stop lamp 8. Lic ...
