Kia Rio: Component Location (2) - Lighting System - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Component Location (2)

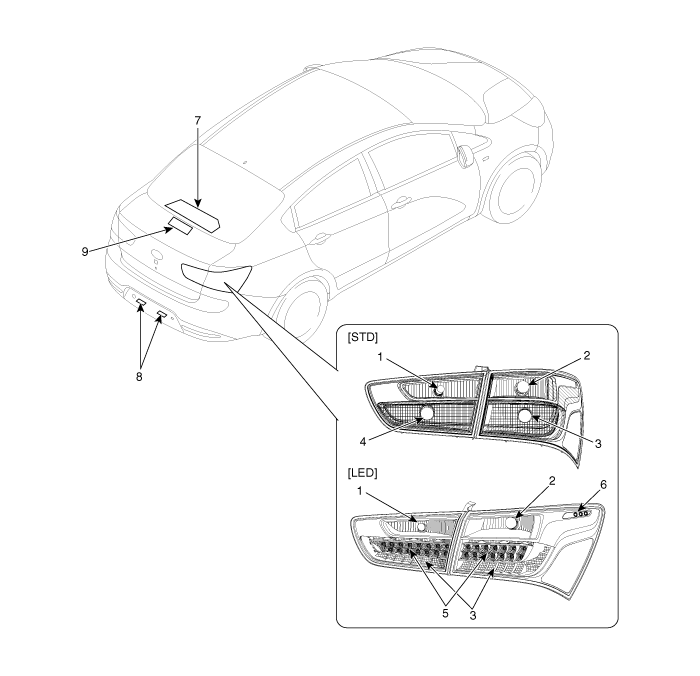

[4 Door]


1. Back up lamp
2. Turn signal lamp
3. Tail lamp/ Stop lamp
4. Tail lamp
5. Stop lamp
6. Side marker lamp
7. High mounted stop lamp
8. License plate lamp
9. Luggage lamp

Component Location (1)
1. Head lamp (Low/ High) 2. Head lamp (Low) 3. Head lamp (High) 4. Turn signal lamp 5. DRL/ Position lamp 6. Side marker lamp 7. Turn signal lamp (Door mirror) 8. F ...

Component Location (3)
[5 Door] 1. Back up lamp 2. Turn signal lamp 3. Tail lamp/ Stop lamp 4. Tail lamp 5. Stop lamp 6. Side marker lamp 7. High mounted stop lamp 8. Lic ...
