Kia Rio: Components Location - Rear Suspension System - Suspension System - Kia Rio UB 2012-2020 Service ManualKia Rio: Components Location

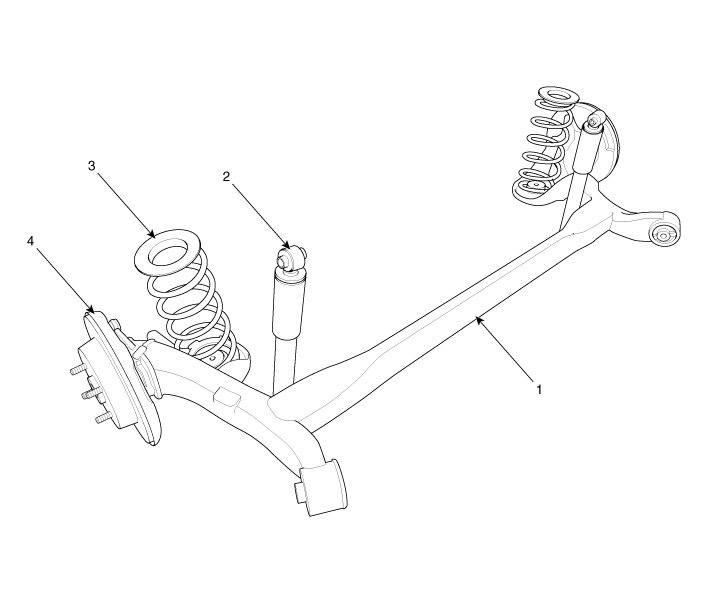

1. Torsion beam axle
2. Shock absorber
3. Coil spring assembly
4. Rear disc

Rear Suspension System
...

Rear Shock Absorber Components
   • Must completely be tigtened at the curb position of vehicle when assemble shock ab ...
