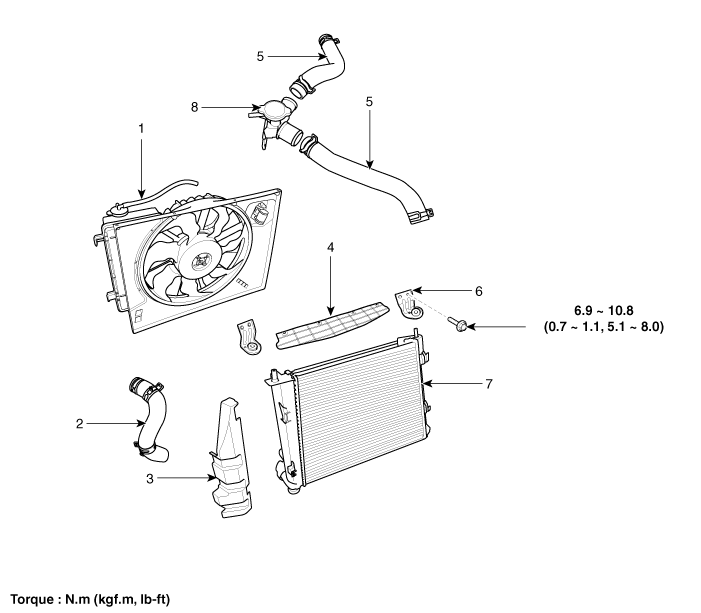

Kia Rio: Radiator: Components - Cooling System - Engine Mechanical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Radiator: Components


1.  Cooling fan & reservoir tank assembly
2.  Radiator lower hose
3.  Air guard
4.  Upper cover
5.  Radiator upper hose
6.  Filler neck
7.  Radiator mounting bracket
8.  Radiator assembly
9.  Mounting insulator
