Kia Rio: Rear Seat Components - Seat & Power Seat - Body (Interior and Exterior) - Kia Rio UB 2012-2020 Service ManualKia Rio: Rear Seat Components

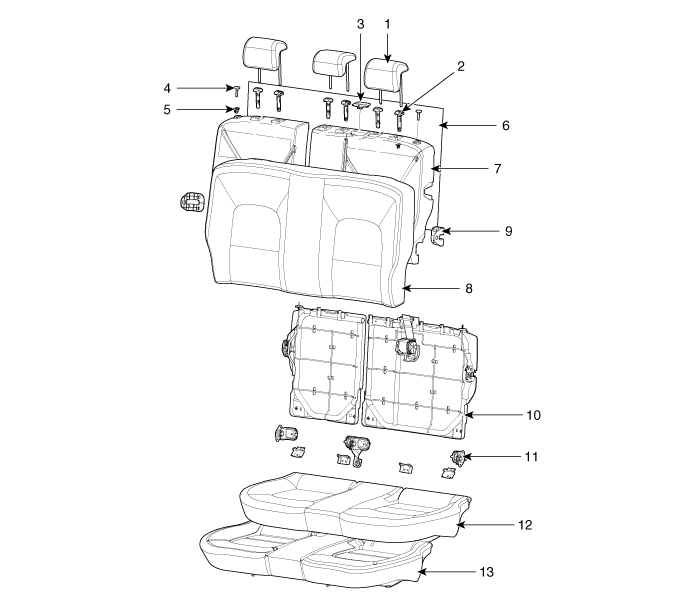

[5 Door]


1. Headrest
2 . Headrest guide
3 . Webbing guide
4 . Rear latch knob
5 . Rear back knob bush
6 . Rear seat back silencer cloth
7 . Rear seat back pad
8 . Rear seat back cover
9 . Rear seat back latch cover
10 . Rear seat back frame assembly
11 . Rear seat back hinge assembly
12 . Rear seat cushion cover
13 . Rear seat cushion pad

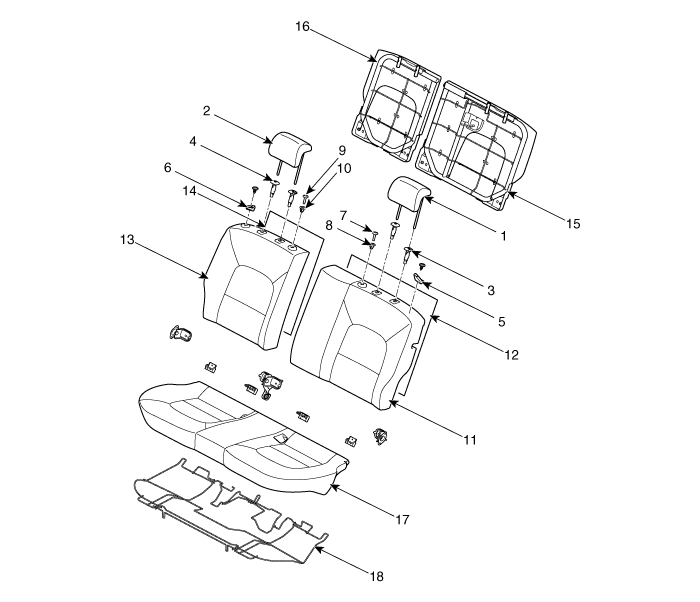

[4 Door]


1. Headrest [LH]
2. Headrest [RH]
3. Headrest guide [LH]
4. Headrest guide [RH]
5. Rear seat back webbing guide [LH]
6. Rear seat back webbing guide [RH]
7. Rear latch knob [LH]
8. Rear back knob bush [LH]
9. Rear latch knob [RH]
10. Rear back knob bush [RH]
11. Rear seat back cover [LH]
12. Rear seat back silencer cloth [LH]
13. Rear seat back cover [RH]
14. Rear seat back silencer cloth [RH]
15. Rear seat back frame assembly [LH]
16. Rear seat back frame assembly [RH]
17. Rear seat cushion cover
18. Rear seat cushion frame assembly
